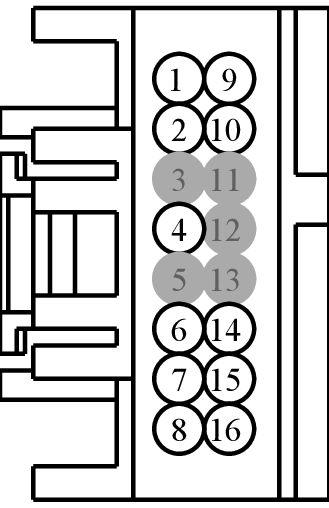

Connector End View (C218B) - CLOCKSPRING

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	GY	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # SENSOR FEED	N/A
2	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # SENSOR RETURN	N/A
3	*	*	Not Used	N/A
4	* (*)	*	CTRL MOD. - SWITCH HORN	N/A
5	*	*	Not Used	N/A
6	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
7	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
8	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
9	* (*)	*	CTRL MOD. - ILLUMINATION FEED	N/A
10	* (*)	*	GROUND - HORN/ILLUMINATION	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
15	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
16	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A

Available Pigtail Kits

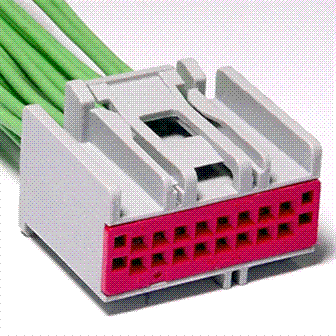

Pigtail Kit Part Number WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Reverse Park Aid (RPA)
Radio
Switch - Power Window - Driver
Switch - Reverse Park Aid

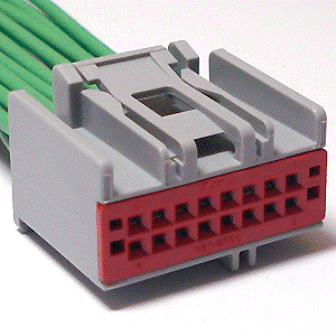

Pigtail Kit Part Number WPT-1582

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Control - Navigation Display
Module - Body Control
Module - Reverse Park Aid (RPA)
Radio
Switch - Power Window - Driver
Switch - Reverse Park Aid
