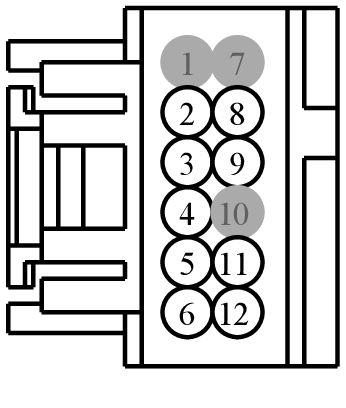

Connector End View (C218A) - CLOCKSPRING

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218A	CLOCKSPRING	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA\|1L2T-14474-CA	Not Available
3F2T-14474-SA	DU2Z-14474-BA	0.64
3F2T-14474-RA	DU2Z-14474-BA	0.64
1L2T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	RHS81 (VT-WH)	22	THERMISTOR - HEATED STEERING WHEEL -	3F2T-14474-SA
3	VHS81 (GN-WH)	22	THERMISTOR - HEATED STEERING WHEEL +	3F2T-14474-SA
4	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	3F2T-14474-SA
5	CRH04 (VT-GN)	22	CTRL MOD. - RELAY HORN	3F2T-14474-SA\|1L2T-14474-CA
5	CR101 (VT-BN)	18	CTRL MOD. - AIR BAG DRIVER 1 +	3F2T-14474-SA\|1L2T-14474-CA
6	GD215 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	3F2T-14474-SA
7	*	*	Not Used	N/A
8	GD215 (BK-GY)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	3F2T-14474-RA
8	GD215 (BK-GN)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	3F2T-14474-RA
9	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	3F2T-14474-SA
10	*	*	Not Used	N/A
11	CR101 (VT-BN)	18	CTRL MOD. - AIR BAG DRIVER 1 +	1L2T-14474-CA
11	RR101 (YE-GN)	18	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA
12	RR101 (YE-GN)	18	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-949

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BMAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Control - Navigation Display
Module - Driver Door
Module - Front Interface
Monitor - Video/DVD
Switch - Gear Shift Select/Neutral Safety
