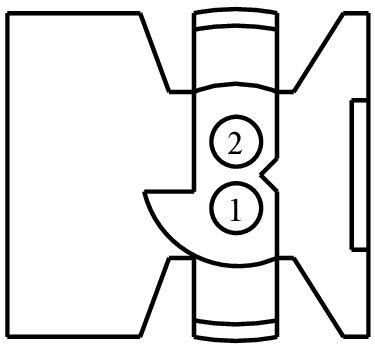

Connector End View (C216A) - DRIVER AIRBAG
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C216A | DRIVER AIRBAG | GY | PIA | 74043B13 | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | CR101 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 + | without AFS | N/A |
| 1 | CR101 (WH) | 20 | CTRL MOD. - AIR BAG DRIVER 1 + | with AFS | N/A |
| 2 | RR101 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 - | without AFS | N/A |
| 2 | RR101 (BU) | 20 | CTRL MOD. - AIR BAG DRIVER 1 - | with AFS | N/A |

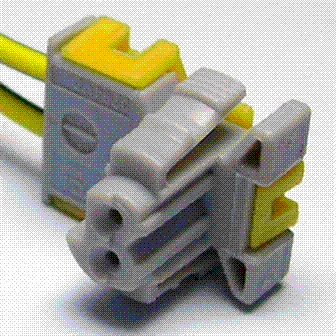

Available Pigtail Kits
Pigtail Kit Part Number WPT-1223
Service Part Number:
BU2Z-14S411-BFA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Squib - Airbag (Passenger)
