Connector End View (C215) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C215 | INLINE | 1440114B079 | Not Available | |||||

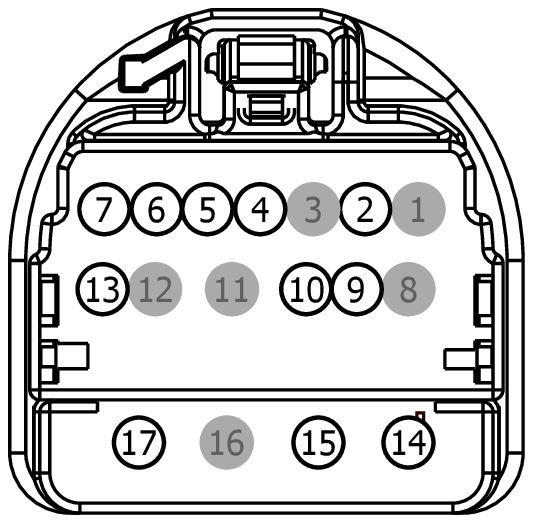

MALE
Harness
14401

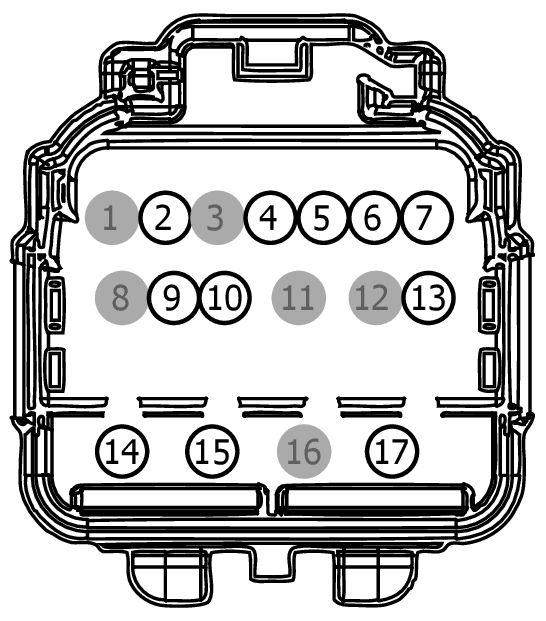

FEMALE
Harness
14B079
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available | |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| 8U5T-14421-DA | EU2Z-14421-DA | 2.8 |
| F8VB-14474-BA | EU2Z-14474-AA | 2.8 |
| EU5T-14421-AA | EU2Z-14421-DA | 2.8 |
| 8U5T-14474-CB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | LME89 (YE-BU) | 22 | 9U5T-14421-BA | |||
| 3 | * | * | N/A | |||
| 4 | RPK07 (GN-OG) | 22 | 9U5T-14421-BA | |||
| 5 | VPK07 (VT) | 22 | 9U5T-14421-BA | |||
| 6 | RME89 (WH-BU) | 22 | 9U5T-14421-BA | |||
| 7 | GD214 (BK-BU) | 22 | 9U5T-14421-BA | |||
| 8 | * | * | N/A | |||
| 9 | VLN04 (VT-GY) | 22 | 9U5T-14421-BA | |||
| 10 | VLN73 (GY-BN) | 22 | 9U5T-14421-BA | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
| 13 | GD214 (BK-BU) | 18 | 97BG-14421-ABB | |||
| 14 | CBB66 (BU-WH) | 18 | 8U5T-14421-DA | |||
| 15 | CBB70 (YE-BU) | 18 | EU5T-14421-AA | |||
| 16 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | LME89 (YE-BU) | 22 | 8U5T-14474-BB | |||
| 3 | * | * | N/A | |||
| 4 | RPK07 (GN-OG) | 20 | 8U5T-14474-CB | |||
| 5 | VPK07 (VT) | 20 | 8U5T-14474-CB | |||
| 6 | RME89 (WH-BU) | 22 | 8U5T-14474-BB | |||
| 7 | GD214 (BK-BU) | 22 | 8U5T-14474-BB | |||
| 8 | * | * | N/A | |||
| 9 | VLN04 (VT-GY) | 22 | 8U5T-14474-BB | |||
| 10 | VLN73 (GY-BN) | 22 | 8U5T-14474-BB | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
| 13 | GD214 (BK-BU) | 18 | 7C3T-14474-DA | |||
| 14 | CBB66 (BU-WH) | 18 | F8VB-14474-BA | |||
| 15 | CBB70 (YE-BU) | 18 | F8VB-14474-BA | |||
| 16 | * | * | N/A | |||
