Connector End View (C213) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C213 | INLINE | 12A58114A303 | See Below | |||||

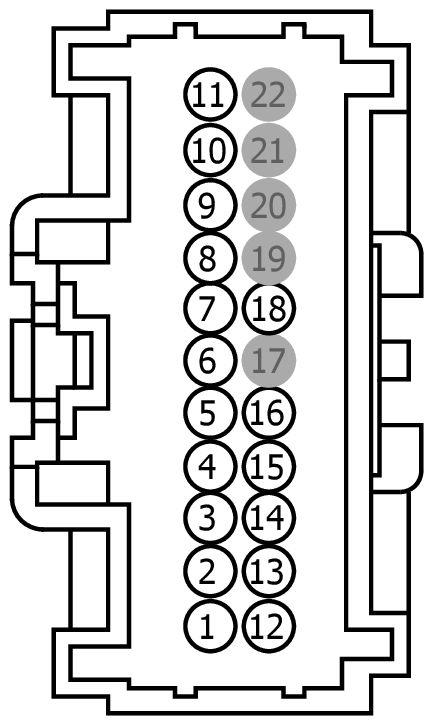

MALE
Harness
12A581

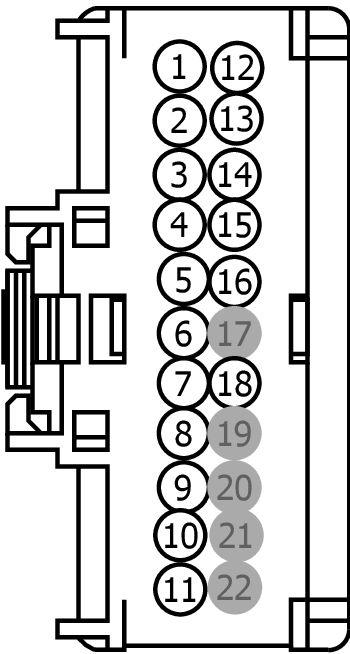

FEMALE
Harness
14A303
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBP04 (VT) | 22 | DU5T-14421-FA | |||
| 2 | CBP22 (GN-OG) | 22 | DU5T-14421-FA | |||
| 3 | CE140 (BN) | 22 | DU5T-14421-FA | |||
| 4 | CE326 (BU-WH) | 22 | DU5T-14421-FA | |||
| 5 | CE913 (BU) | 22 | DU5T-14421-FA | |||
| 6 | RE327 (GY-VT) | 22 | DU5T-14421-FA | |||
| 7 | CE912 (YE-GN) | 22 | DU5T-14421-FA | |||
| 8 | CE926 (VT-BN) | 22 | DU5T-14421-FA | |||
| 9 | CE914 (GN) | 22 | DU5T-14421-FA | |||
| 10 | LE434 (WH-BN) | 22 | DU5T-14421-FA | |||
| 11 | CE933 (BU-OG) | 22 | DU5T-14421-FA | |||
| 12 | VMC05 (VT-OG) | 22 | DU5T-14421-FA | |||
| 13 | CET21 (GN-WH) | 18 | 9U5T-14421-BA | |||
| 14 | CET22 (GY-BN) | 18 | 9U5T-14421-BA | |||
| 15 | CMC25 (WH-VT) | 22 | DU5T-14421-FA | |||
| 16 | RE407 (YE-VT) | 22 | DU5T-14421-FA | |||
| 17 | * | * | N/A | |||
| 18 | LE424 (YE-GN) | 22 | DU5T-14421-FA | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| 21 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBP04 (VT) | 22 | 8U5T-14474-BB | |||
| 2 | CBP22 (GN-OG) | 22 | 8U5T-14474-BB | |||
| 3 | CE140 (BN) | 22 | 8U5T-14474-BB | |||
| 4 | CE326 (BU-WH) | 22 | 8U5T-14474-BB | |||
| 5 | CE913 (BU) | 22 | 8U5T-14474-BB | |||
| 6 | RE327 (GY-VT) | 22 | 8U5T-14474-BB | |||
| 7 | CE912 (YE-GN) | 22 | 8U5T-14474-BB | |||
| 8 | CE926 (VT-BN) | 22 | 8U5T-14474-BB | |||
| 9 | CE914 (GN) | 22 | 8U5T-14474-BB | |||
| 10 | LE434 (WH-BN) | 22 | 8U5T-14474-BB | |||
| 11 | CE933 (BU-OG) | 22 | 8U5T-14474-BB | |||
| 12 | VMC05 (VT-OG) | 22 | 8U5T-14474-BB | |||
| 13 | CET21 (GN-WH) | 22 | 8U5T-14474-BB | |||
| 14 | CET22 (GY-BN) | 22 | 8U5T-14474-BB | |||
| 15 | CMC25 (WH-VT) | 22 | 8U5T-14474-BB | |||
| 16 | RE407 (YE-VT) | 22 | 8U5T-14474-BB | |||
| 17 | * | * | N/A | |||
| 18 | LE424 (YE-GN) | 22 | 8U5T-14474-BB | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| 21 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1616
Service Part Number:
KU2Z-14S411-MA
Gauge:
20
Pin material:
Silver
Cavities:
22
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview With Memory
