Connector End View (C210) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Inline: Description Color Harness Base Part # Service Pigtail
C210 INLINE 12A58114A005 Not Available

MALE

Harness

12A581

FEMALE

Harness

14A005

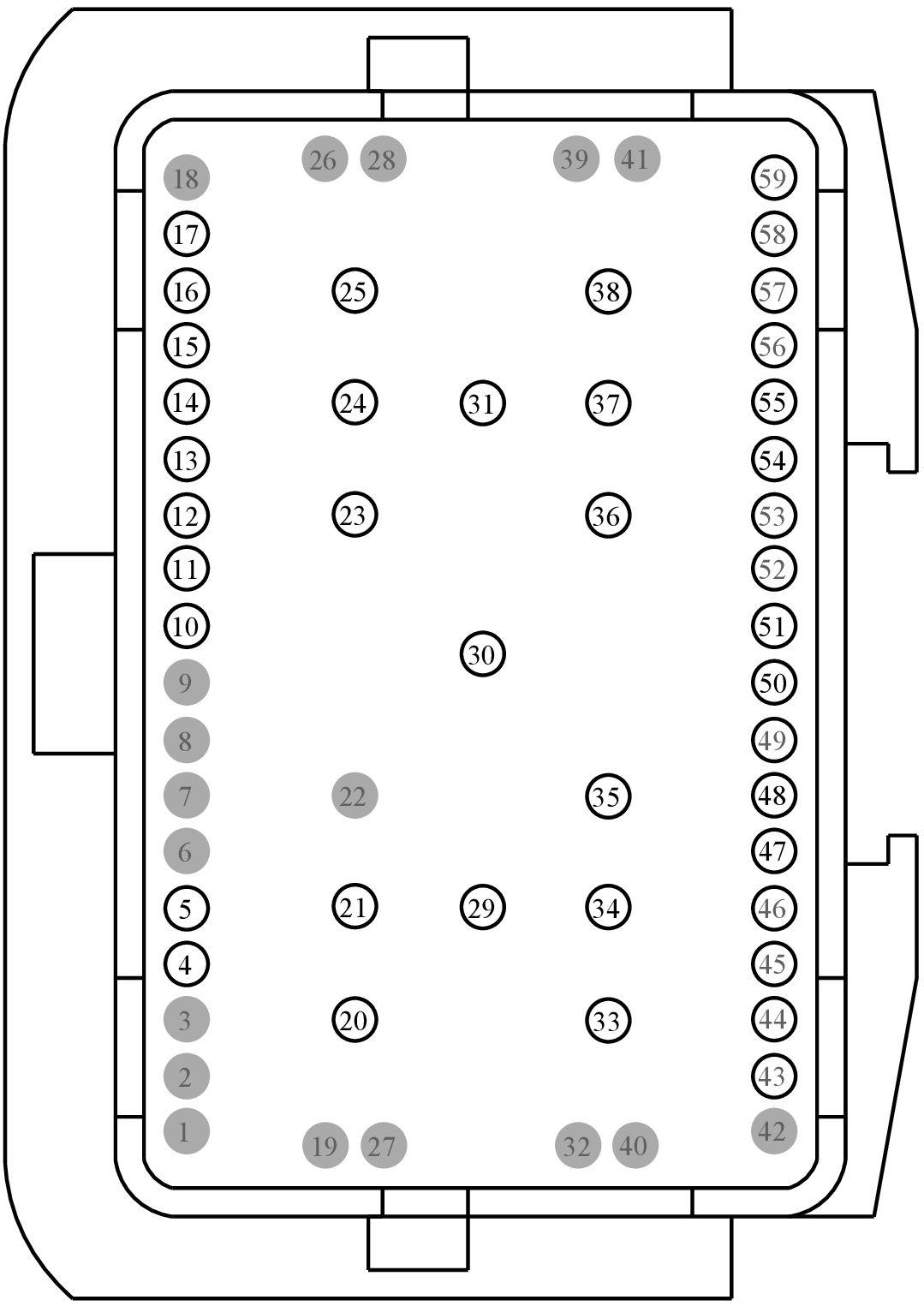

GFDWR56252Courtesy of FORD MOTOR COMPANY

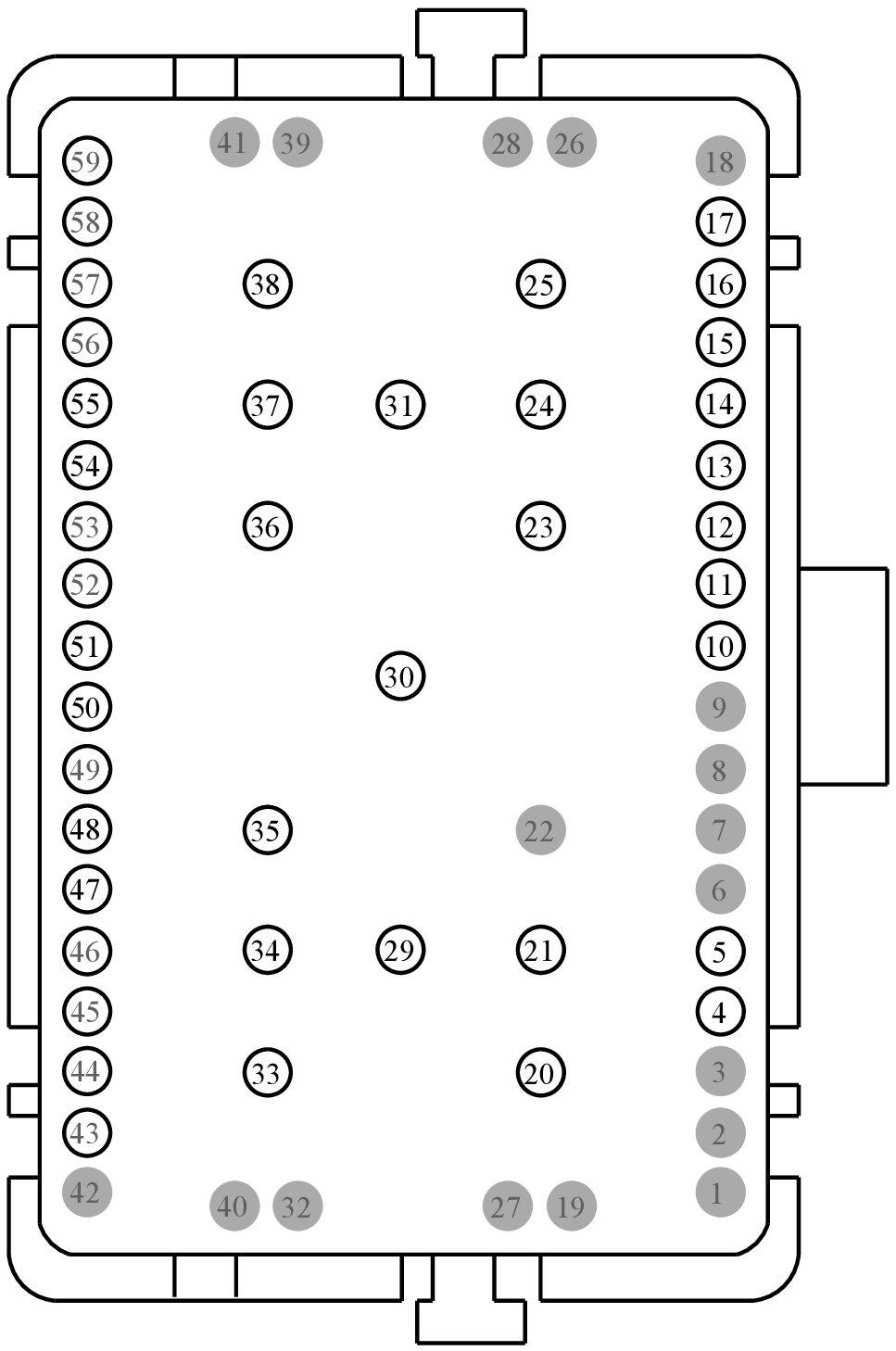

GFDWR56253Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
DU5T-14421-CB EU2Z-14421-AA 0.64
3F2T-14474-RA DU2Z-14474-BA 0.64
DU5T-14421-DB EU2Z-14421-AA 0.64
3F2T-14474-SA DU2Z-14474-BA 0.64
97BG-14421-CCA KU2Z-14421-AA 6.3
3M5T-14474-HCA DU2Z-14474-EA 2.8
97BG-14421-BCA EU2Z-14421-EA 2.8
97BG-14474-BBA DU2Z-14474-EA 2.8
97BG-14421-BBA EU2Z-14421-EA 2.8
97BG-14474-BCA DU2Z-14474-EA 2.8
XF2T-14421-AA EU2Z-14421-EA 2.8
97BG-14474-CCA JU2Z-14474-AB 6.3
97BG-14474-CBA JU2Z-14474-AB 6.3
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 VDB26 (GY-BU) 22 DU5T-14421-CB
5 VDB25 (GN-OG) 22 DU5T-14421-CB
6 * * N/A
7 * * N/A
8 * * N/A
9 * * N/A
10 VDB26 (GY-BU) 22 DU5T-14421-CB
11 VDB25 (GN-OG) 22 DU5T-14421-CB
12 CBB96 (BU-GN) 22 DU5T-14421-CB
13 CLS30 (VT-WH) 18 DU5T-14421-DB
14 VE750 (GN-BU) 22 DU5T-14421-CB
15 RE407 (YE-VT) 18 DU5T-14421-DB
16 CPW58 (YE-OG) 22 DU5T-14421-CB
17 CPW59 (VT-BN) 22 DU5T-14421-CB
18 * * N/A
19 * * N/A
20 SBB57 (RD) 10 97BG-14421-BCA
21 SBB61 (GY-RD) 10 97BG-14421-BCA
22 * * N/A
23 CBB10 (YE-OG) 20 97BG-14421-BBA
24 CPW67 (BN-VT) 10 97BG-14421-BCA
25 CPW68 (VT-OG) 10 97BG-14421-BCA
26 * * N/A
27 * * N/A
28 * * N/A
29 SBB65 (RD) 18 97BG-14421-CCA
30 CBB12 (GN-WH) 18 97BG-14421-CCA
31 SBB42 (YE-RD) 18 97BG-14421-CCA
32 * * N/A
33 CLF03 (VT-OG) 18 97BG-14421-BBA
34 SBB83 (BU-RD) 18 97BG-14421-BBA
35 SBB56 (VT-RD) 18 XF2T-14421-AA
36 SBB55 (WH-BU) 10 97BG-14421-BCA
37 CBB68 (GY-VT) 16 97BG-14421-BCA
38 SBB67 (BU-RD) 10 97BG-14421-BCA
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 CPM44 (GN-OG) 18 DU5T-14421-DB
48 CPM43 (WH-VT) 18 DU5T-14421-DB
49 * * N/A
50 CES09 (VT-OG) 22 DU5T-14421-CB
51 CMC25 (WH-VT) 22 DU5T-14421-CB
52 * * N/A
53 * * N/A
54 CBP22 (GN-OG) 22 DU5T-14421-CB
55 CBB34 (VT-BN) 20 DU5T-14421-DB
56 * * N/A
57 * * N/A
58 * * N/A
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 VDB26 (GY-BU) 22 3F2T-14474-SA
5 VDB25 (GN-OG) 22 3F2T-14474-SA
6 * * N/A
7 * * N/A
8 * * N/A
9 * * N/A
10 VDB26 (GY-BU) 22 3F2T-14474-SA
11 VDB25 (GN-OG) 22 3F2T-14474-SA
12 CBB96 (BU-GN) 22 3F2T-14474-SA
13 CLS30 (VT-WH) 18 3F2T-14474-RA
14 VE750 (GN-BU) 22 3F2T-14474-SA
15 RE407 (YE-VT) 22 3F2T-14474-SA
16 CPW58 (YE-OG) 22 3F2T-14474-SA
17 CPW59 (VT-BN) 22 3F2T-14474-SA
18 * * N/A
19 * * N/A
20 SBB57 (RD) 16 3M5T-14474-HCA
21 SBB61 (GY-RD) 16 3M5T-14474-HCA
22 * * N/A
23 CBB10 (YE-OG) 20 97BG-14474-BBA
24 CPW67 (BN-VT) 10 3M5T-14474-HCA
25 CPW68 (VT-OG) 10 3M5T-14474-HCA
26 * * N/A
27 * * N/A
28 * * N/A
29 SBB65 (RD) 18 97BG-14474-CCA
30 CBB12 (GN-WH) 10 97BG-14474-CBA
31 SBB42 (YE-RD) 18 97BG-14474-CCA
32 * * N/A
33 CLF03 (VT-OG) 20 97BG-14474-BBA
34 SBB83 (BU-RD) 18 97BG-14474-BBA
35 SBB56 (VT-RD) 10 3M5T-14474-HCA
36 SBB55 (WH-RD) 10 3M5T-14474-HCA
37 CBB68 (GY-VT) 16 97BG-14474-BCA
38 SBB67 (BU-RD) 16 3M5T-14474-HCA
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 CPM44 (GN-OG) 22 3F2T-14474-SA
48 CPM43 (WH-VT) 22 3F2T-14474-SA
49 * * N/A
50 CES09 (VT-OG) 22 3F2T-14474-SA
51 CMC25 (WH-VT) 22 3F2T-14474-SA
52 * * N/A
53 * * N/A
54 CBP22 (GN-OG) 22 3F2T-14474-SA
55 CBB34 (VT-BN) 20 3F2T-14474-RA
56 * * N/A
57 * * N/A
58 * * N/A
