Connector End View (C202) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C202 | INLINE | 12A58114A005 | See Below | |||||

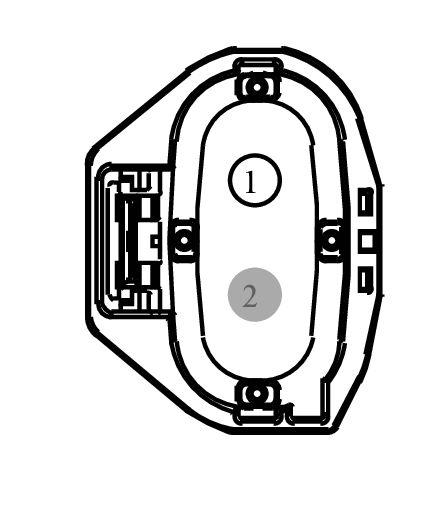

MALE
Harness
12A581

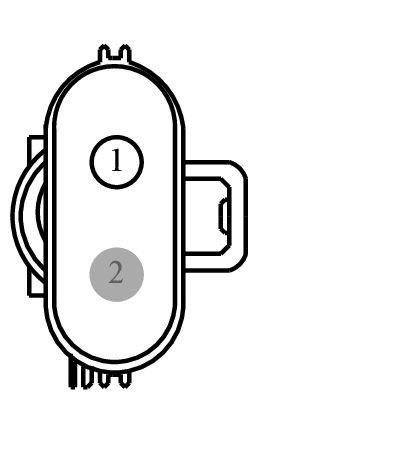

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14421-FA | Not Available | |
| 8V5T-14474-NA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | SBB49 (RD) | 20 | FU5T-14421-FA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | SBB49 (RD) | 18 | 8V5T-14474-NA | |||

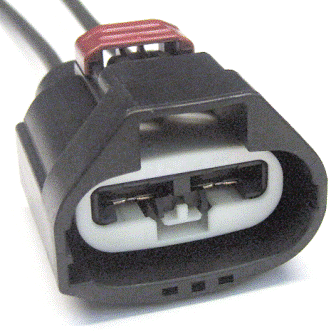

Available Pigtail Kits
Pigtail Kit Part Number WPT-910
Service Part Number:
8U2Z-14S411-SA
Gauge:
10
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Module - Power Moonroof
