Connector End View (C192) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C192	INLINE	12A58112A581			See Below

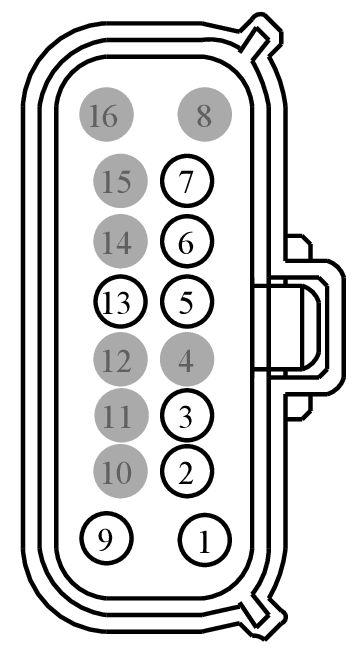

MALE

Harness

12A581

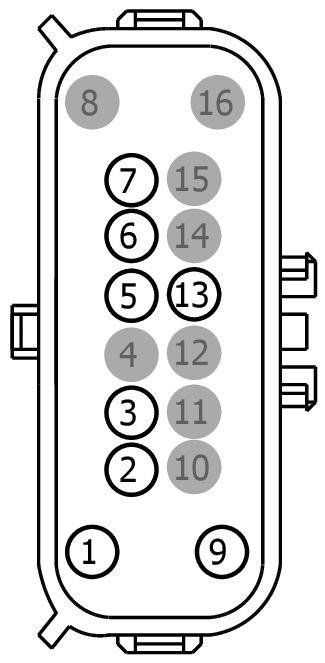

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BFA	DU2Z-14474-FA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
7C3T-14474-EA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE512 (GY-BU)	12	N/A
2	VDB04 (WH-BU)	20	N/A
3	VDB05 (WH)	20	N/A
4	*	*	N/A
5	CE629 (YE-BU)	20	N/A
6	SBB95 (WH-RD)	20	N/A
7	CBK05 (YE)	14	N/A
8	*	*	N/A
9	GD112 (BK-GN)	12	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	CE261 (GY-OG)	20	N/A
14	*	*	N/A
15	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE512 (GY-BU)	10	97BG-14474-BFA
2	VDB04 (WH-BU)	18	BU5T-14474-UA
3	VDB05 (WH)	18	BU5T-14474-UA
4	*	*	N/A
5	CE629 (YE-BU)	18	BU5T-14474-UA
6	SBB95 (WH-RD)	18	BU5T-14474-UA
7	CBK05 (YE)	16	7C3T-14474-EA
8	*	*	N/A
9	GD112 (BK-GN)	10	97BG-14474-BFA
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	CE261 (GY-OG)	18	BU5T-14474-UA
14	*	*	N/A
15	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1393

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-KB

Gauge:

14 18

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
For Mating Connector Refer To WPT-1142

Pigtail Kit Part Number WPT-1491

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-JC

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
Switch - Turn Signal
