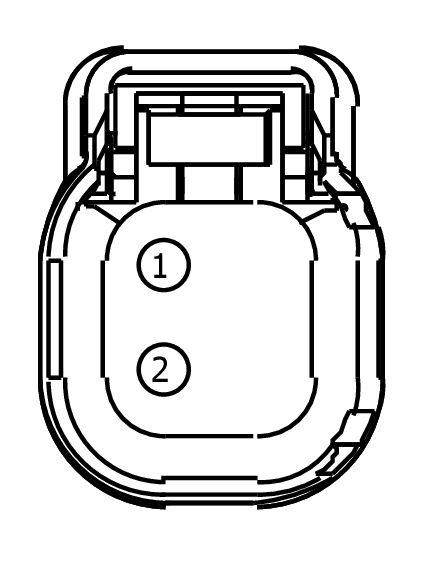

Connector End View (C185) - FUEL INJECTOR 5
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C185 |
FUEL INJECTOR 5 |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 7C3T-14474-RA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE209 (BN) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + |
7C3T-14474-RA |
| 2 |
CBK01 (BU) |
18 |
FUSE - 1 OR CIRCUIT BREAKER (VPWR F) |
7C3T-14474-RA |
