Connector End View (C162) - FOG LAMP, RIGHT
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C162 | FOG LAMP, RIGHT | 15K867 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F2AB-14474-NA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD131 (BK-GY) | 18 | GROUND - HEADLAMP PANEL/GOR RIGHT | F2AB-14474-NA | ||||
| 2 | CLF34 (YE-OG) | 18 | CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON | F2AB-14474-NA | ||||

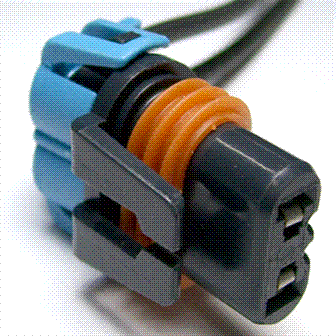

Available Pigtail Kits
Pigtail Kit Part Number WPT-1080
Service Part Number:
1U2Z-14S411-FC
Gauge:
12
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Lamp - Fog/Driving
- Lamp - Headlamp - High Beam
