Connector End View (C134) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C134	INLINE	12A58115K867			See Below

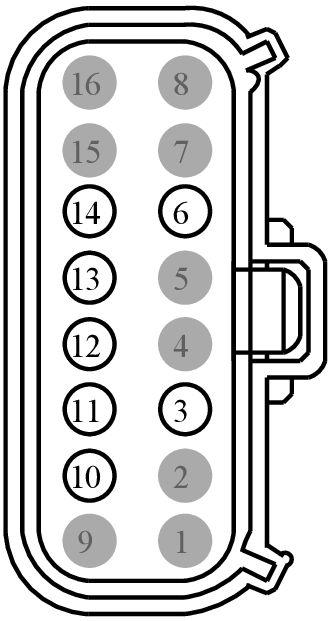

MALE

Harness

12A581

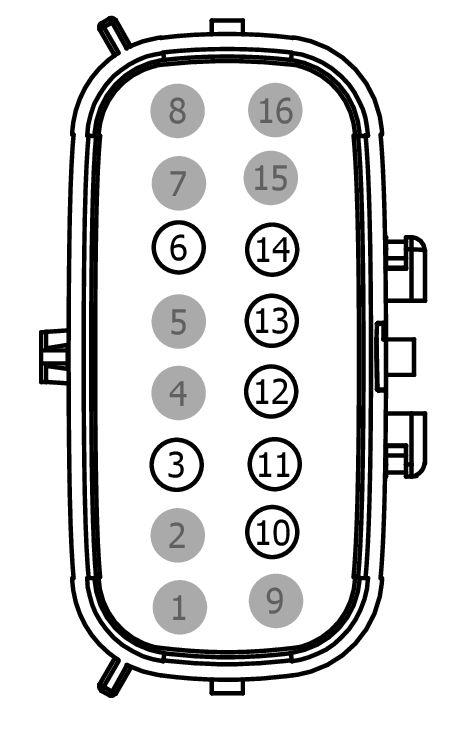

FEMALE

Harness

15K867

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA	EU2Z-14421-CA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	CBB31 (BU-OG)	18	BU5T-14421-HA
4	*	*	N/A
5	*	*	N/A
6	GD129 (BK-YE)	18	BU5T-14421-HA
6	GD129AGG (BK-YE)	18	BU5T-14421-HA
7	*	*	N/A
8	*	*	N/A
9	*	*	N/A
10	CLF29 (BN)	18	BU5T-14421-HA
11	CLF34 (YE-OG)	18	BU5T-14421-HA
12	VDB26 (GY-BU)	18	BU5T-14421-HA
13	VDB25 (GN-OG)	18	BU5T-14421-HA
14	GD131 (BK-GY)	18	BU5T-14421-HA
14	GD131CDG (BK-GY)	18	BU5T-14421-HA
15	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	CBB31 (BU-OG)	18	BU5T-14474-UA
4	*	*	N/A
5	*	*	N/A
6	GD129 (BK-YE)	18	BU5T-14474-UA
7	*	*	N/A
8	*	*	N/A
9	*	*	N/A
10	CLF29 (BN)	18	BU5T-14474-UA
11	CLF34 (YE-OG)	18	BU5T-14474-UA
12	VDB26 (GY-BU)	18	BU5T-14474-UA
13	VDB25 (GN-OG)	18	BU5T-14474-UA
14	GD131 (BK-GY)	18	BU5T-14474-UA
15	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1599

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-VB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Park/Turn/Stop
Mirror - Sideview
Module - Heated Seat (driver)
Module - Heated Seat (Passenger)
Sensor - Knock

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Headlamp - High/Low Beam
Mating Connector WPT-1404
Module - Heated Seat (driver)
Module - Transfer Case Shift Control
