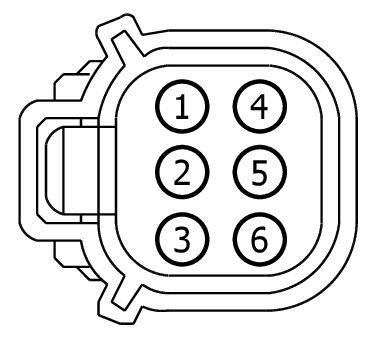

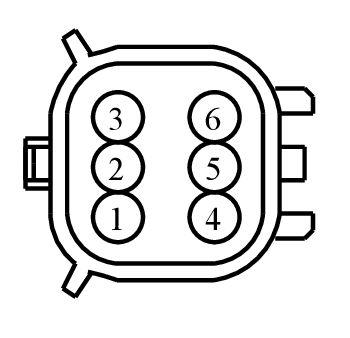

Connector End View (C133) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C133	INLINE	BK	12C508PIA	See Below

MALE

Harness

12C508

FEMALE

Harness

PIA

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7U5T-14421-BA\|2L1T-14421-CA	Not Available

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE801 (VT-OG)	20	7U5T-14421-BA\|2L1T-14421-CA
2	RE323 (WH-BN)	20	7U5T-14421-BA\|2L1T-14421-CA
2	VE802 (BN-BU)	20	7U5T-14421-BA\|2L1T-14421-CA
3	VE712 (BU-GY)	20	7U5T-14421-BA\|2L1T-14421-CA
4	RE323 (WH-BN)	20	7U5T-14421-BA\|2L1T-14421-CA
4	RE324 (BN-GN)	20	7U5T-14421-BA\|2L1T-14421-CA
5	RE324 (BN-GN)	20	7U5T-14421-BA\|2L1T-14421-CA
5	VE802 (BN-BU)	20	7U5T-14421-BA\|2L1T-14421-CA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE801 (VT-OG)	20	6.2L, 6.8L	N/A
2	RE323 (WH-BN)	20	6.8L	N/A
2	VE802 (BN-BU)	20	6.2L	N/A
3	VE712 (BU-GY)	18	N/A
4	RE323 (WH-BN)	20	6.2L	N/A
4	RE324 (BN-GN)	20	6.8L	N/A
5	RE324 (BN-GN)	20	6.2L	N/A
5	VE802 (BN-BU)	20	6.8L	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1426

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-TA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Camera - Reverse Park Aid
Lamp - Park/Turn/Stop
Sensor - Coolant Temperature
Sensor - O2 (HEGO/ EGO)

Pigtail Kit Part Number WPT-971

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FEAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Headlamp - High/Low Beam
Lamp - Park/Turn/Stop
Motor - Engine Cooling Fan
Motor - Running Board
