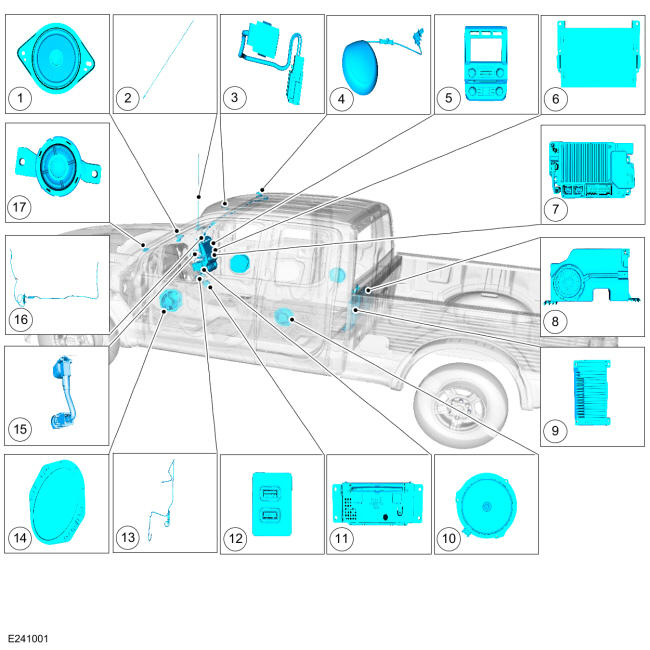

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | RHF tweeter speaker |
| 2 | AM/ FM antenna |
| 3 | SYNC ® microphone |
| 4 | Satellite antenna |
| 5 | FCIM |
| 6 | 8-inch (203 mm) FDIM touchscreen |
| 7 | APIM |
| 8 | Subwoofer speaker and enclosure assembly |
| 9 | Audio DSP module |
| 10 | LHR door speaker |
| 11 | ACM |
| 12 | USB hub |
| 13 | USB cable |
| 14 | LHF door speaker |
| 15 | LVDS cable |
| 16 | AM/ FM antenna coaxial cable |
| 17 | Instrument panel center speaker |
