Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug boots or coil-on-plug assemblies as needed.
    GFD203705Courtesy of FORD MOTOR COMPANY

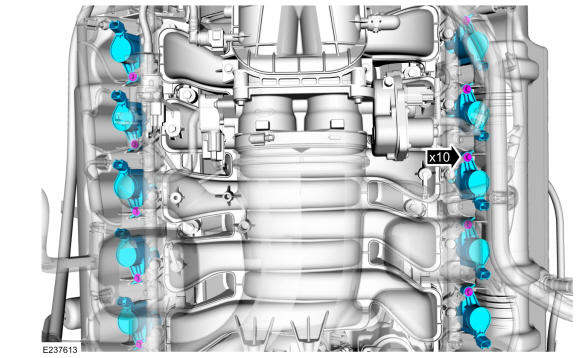

    • Install the ignition coil-on-plugs.

    • Install and tighten the ignition coil-on-plug retaining bolts.

      Torque: 53 lb.in (6 Nm)

    GFD203704Courtesy of FORD MOTOR COMPANY

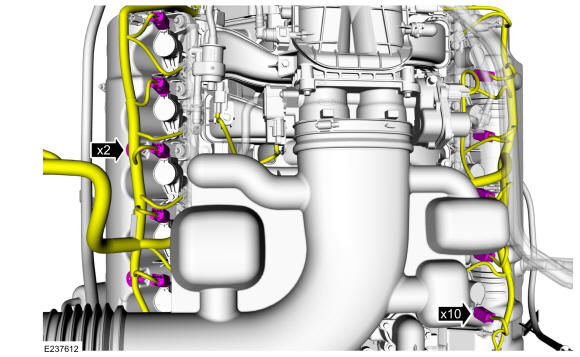

  3. Attach the wiring harness retainers and then connect the ignition coil-on-plug electrical connectors.
GFD203703Courtesy of FORD MOTOR COMPANY
