Fuel Cooling System (Transit)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Ford Transit-350 HD, 2018 Ford Transit-350, 2018 Ford Transit-250, 2018 Ford Transit-150, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

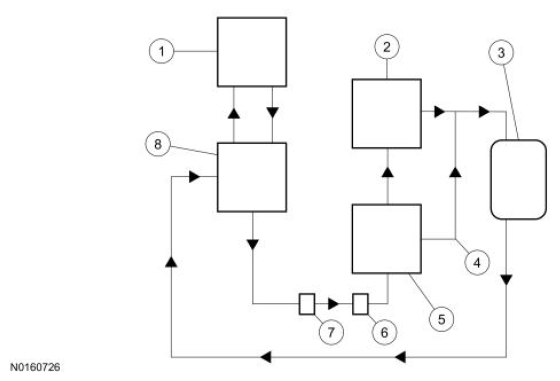

Fig 1: Fuel Cooling System (Transit) Circuit Diagram

Courtesy of FORD MOTOR CO.

Item	Number	Description
1	-	Fuel Tank
2	-	Fuel Rail
3	-	Fuel Cooler
4	-	High Pressure Pump Bypass
5	-	High Pressure Pump
6	-	Fuel Rail Temperature (FRT) Sensor
7	-	Fuel Delivery Pressure Switch
8	-	Fuel Conditioning Module
