EGR Cooler (F-150)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Ford Transit-350 HD, 2018 Ford Transit-350, 2018 Ford Transit-250, 2018 Ford Transit-150, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

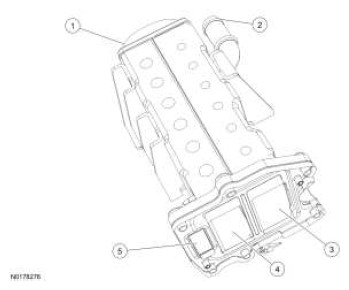

| Item | Number | Description |
|---|---|---|
| 1 | - | EGR Cooler Assembly |
| 2 | - | Cooling System Coolant Return From The EGR Cooler |
| 3 | - | Exhaust Gas Outlet From The EGR Cooler To The EGR Valve |
| 4 | - | Exhaust Gas Inlet From The Exhaust Manifold To The EGR Cooler |
| 5 | - | Cooling System Coolant Supply To The EGR Cooler |
Exhaust Gas Recirculation (EGR) Cooler - Transit
The EGR cooler is located at the rear of the cylinder block.
