Selector Lever Cable - 6-Speed Automatic Transmission - 6R140: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .
- Position the selector lever in D.
-
NOTE: Push button start vehicle shown, all others similar.
Lower the steering column opening trim panel.
- If equipped, disconnect the electrical connector.
- Disconnect the electrical connector(s).
-
NOTE: Push button start vehicle shown, all others similar.
Remove the screws and the steering column opening trim panel.
- Remove the bolts and the steering column reinforcement panel.
- Remove the selector cable retainer bolt.
-

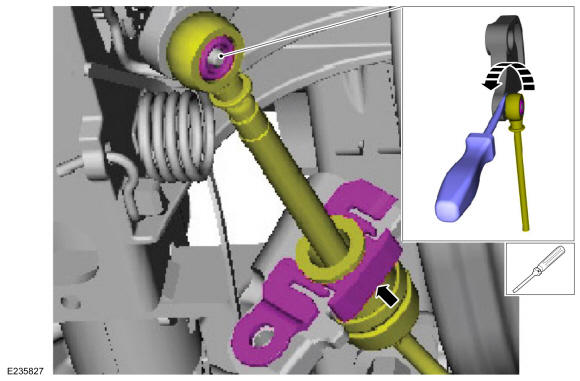

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.
Using a screwdriver, disconnect the selector lever cable from the selector lever mechanism and the steering column.

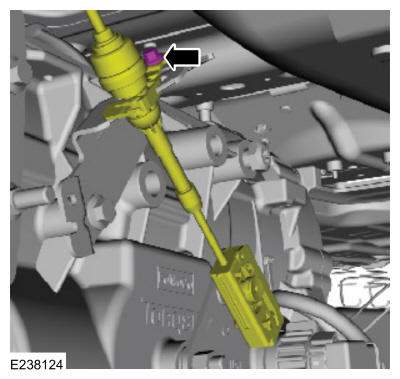

- Disconnect the selector lever cable retainer.
- If equipped, remove the floor console. Refer to: Floor Console .
- If equipped, remove the screw and position the instrument panel lower center finish panel aside.
- Push the rubber grommet and the selector lever cable through the floor pan.

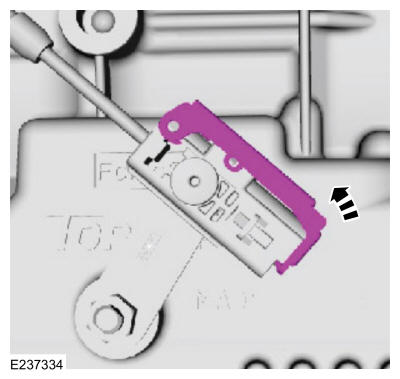

- Clean the cable adjuster lock.

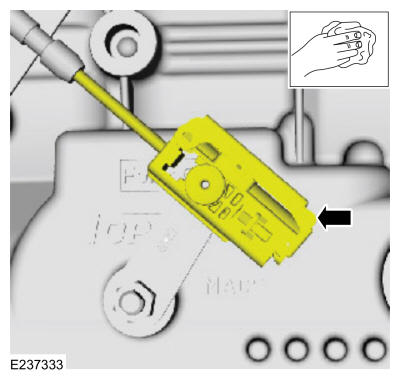

- Open the adjuster lock.
-
NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

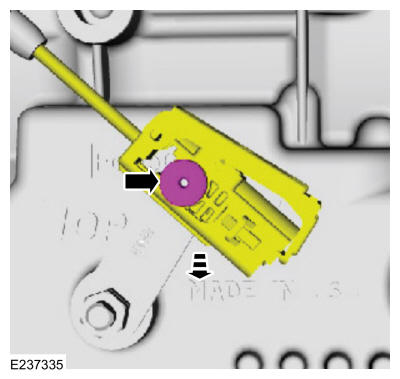

Disconnect the selector lever cable from the transmission manual lever.

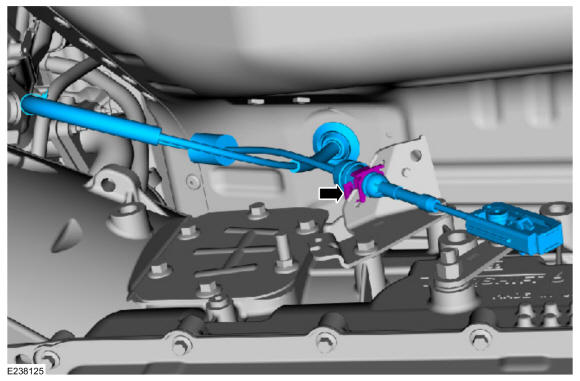

- Remove the selector lever retainer bolt.
- Remove the clip and the selector lever cable.
