Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6R100

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
Clean the cable adjuster lock.

Courtesy of FORD MOTOR COMPANY

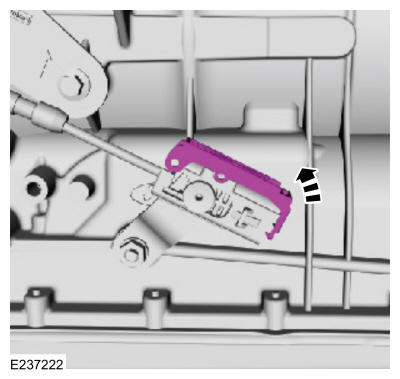

Open the adjuster lock.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

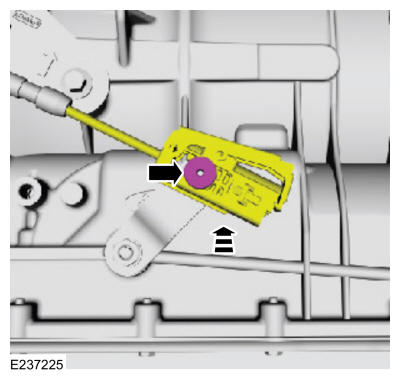

Disconnect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY

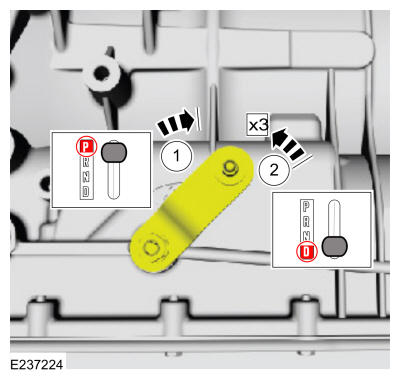

Position the manual lever in D.
1. Rotate the manual lever clockwise until it stops.
2. Rotate the manual lever counterclockwise 3 detents.
Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Close the adjuster lock.

Courtesy of FORD MOTOR COMPANY
Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
