Component Location - Blind Spot Monitoring System (BLIS ®)

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

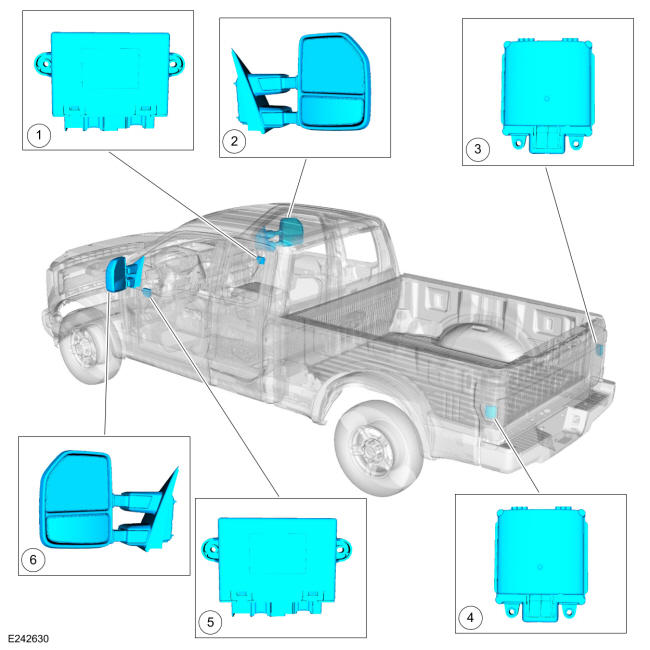

GFD206108Courtesy of FORD MOTOR COMPANY
Item Description
1 PDM
2 RH Exterior Mirror
3 SODR
4 SODL
5 DDM
6 LH Exterior Mirror
