Disassembly And Assembly: Turbocharger: Assembly
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, and 2018 Ford F-350 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

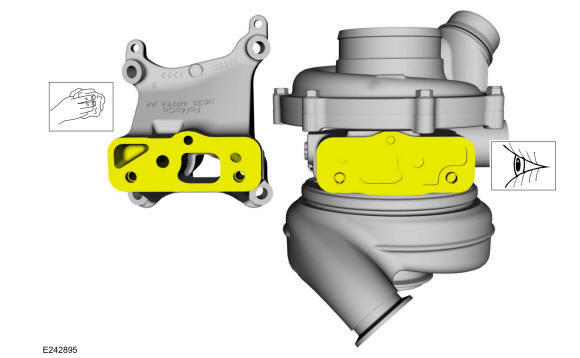

- Check the turbocharger and the turbocharger pedestal sealing surfaces for damage.
- Clean the turbocharger and the turbocharger pedestal sealing surfaces.

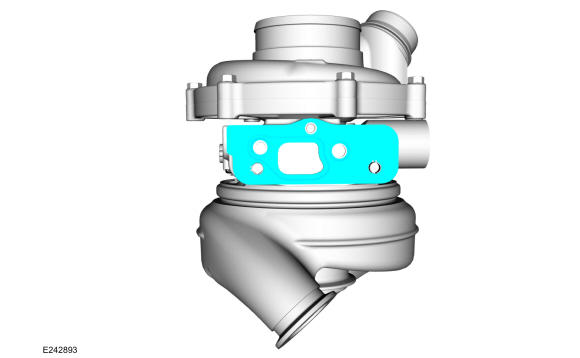

- Install a new turbocharger pedestal gasket.

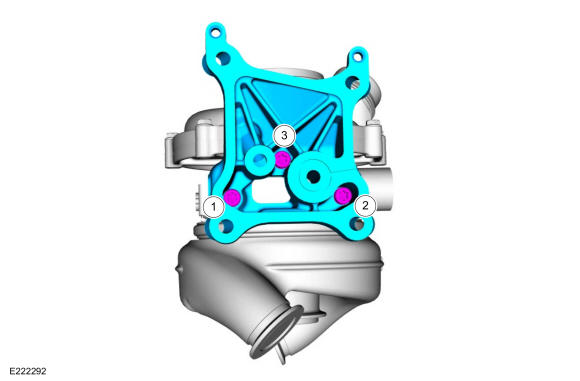

- With the aid of an assistant, install the turbocharger pedestal on to the turbocharger. Install the new turbocharger pedestal bolts and washers, then tighten the turbocharger pedestal bolts in the following 3 stages and in the sequence shown.
Torque:
Stage 1: 133 lb.in (15 Nm)
Stage 2: 177 lb.in (20 Nm)
Stage 3: 120 °
- Remove the turbocharger from the bench.
