Section 132 (Engine Controls - Fuel Charging And Controls - Turbocharger - 6.7L Power Stroke Diesel)
>>
Description And Operation
>>

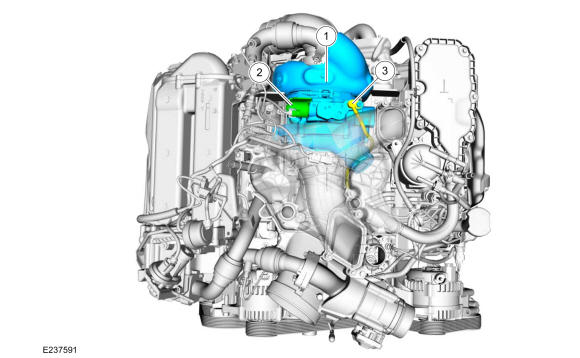

Turbocharger - Component Location
>>
6.7L Power Stroke Diesel
6.7L Power Stroke Diesel
WARNING:
This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, and 2018 Ford F-350 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Turbocharger
2
Turbocharger solenoid
3
Turbocharger coolant return tube
