Pinpoint Tests W: Exhaust Gas RECIRCULATION (EGR) System: Introduction
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Ford Transit-350 HD, 2018 Ford Transit-350, 2018 Ford Transit-250, 2018 Ford Transit-150, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- harness circuits: VREF, EGRVCH, EGRVCL, EGR and SIGRTN
- EGR valve (9D475)
- PCM (12A650)

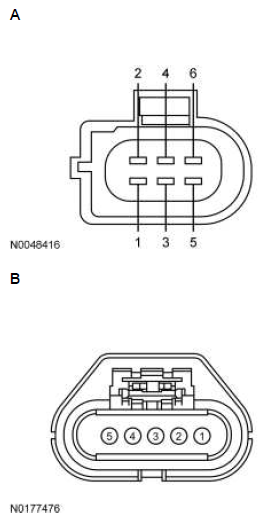

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-Series Super Duty | A | 2 6 3 1 5 |
EGRVCH EGRVCL EGR SIGRTN VREF |
| F-150 | B | 1 2 5 4 3 |
EGRVCH EGRVCL EGR SIGRTN VREF |
| All other vehicles | A | 1 5 2 4 6 |
EGRVCH EGRVCL EGR SIGRTN VREF |

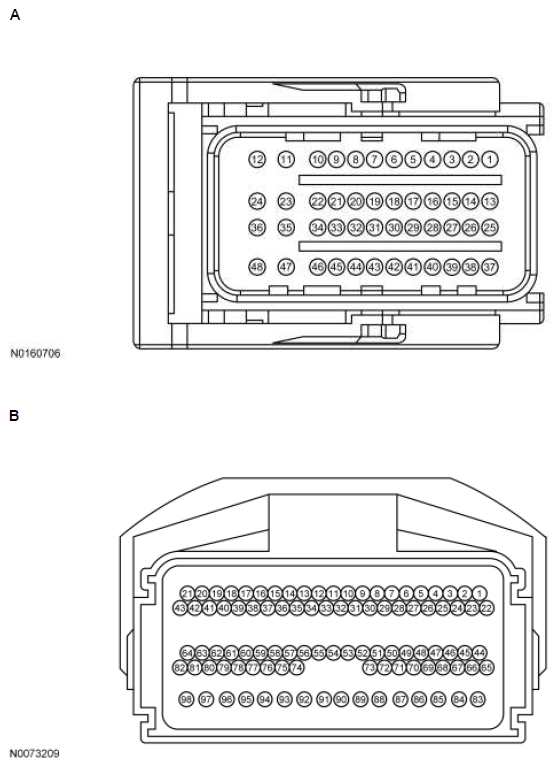

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit | A | 45 46 26 |
EGRVCH EGRVCL EGR |
| All other vehicles | B | 81 82 61 |
EGRVCH EGRVCL EGR |
