Pinpoint Tests Ma: Fuel Pump Control - Low Pressure Pump: Introduction
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Ford Transit-350 HD, 2018 Ford Transit-350, 2018 Ford Transit-250, 2018 Ford Transit-150, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- fuel pump (FP) (9H307)
- fuel pump control module (9D412)
- fuel pump relay
- harness circuits: B+, GND, FP, FPC, FPM, FPPWR, FPRTN, and VPWR Fuel
- PCM (12A650)

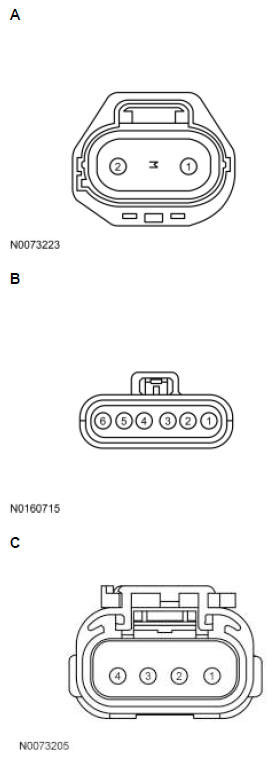

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-650/F-750 | A | 1 2 |
FPGND FPPWR-B |
| Transit | B | 3 4 |
FPRTN FPPWR |
| All other vehicles | C | 3 4 |
FPRTN FPPWR |
| Pin | Circuit |
|---|---|
| 8 | FPRTN (Fuel Pump Return) |
| 5 | FPPWR (Fuel Pump Power) |
| 7 | FPM (Fuel Pump Monitor) |
| 3 | FPC (Fuel Pump Command) |
| 4 | GND (Ground) |
| 1 | VPWR Fuel |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-650/F-750 | A | 2 5 1, 3 |
FPC FPPWR-A B+ |
| Transit | B | 2 1, 3 5 |
FP B+ VPWR Fuel |
| Pin | Circuit |
|---|---|
| 12 | FP (Fuel Pump) |
| Pin | Circuit |
|---|---|
| 24 | FP (Fuel Pump) |
| 25 | VPWR Fuel |
| Pin | Circuit |
|---|---|
| 50 | VPWR Fuel |
| Pin | Circuit |
|---|---|
| 3 | FP (Fuel Pump) |

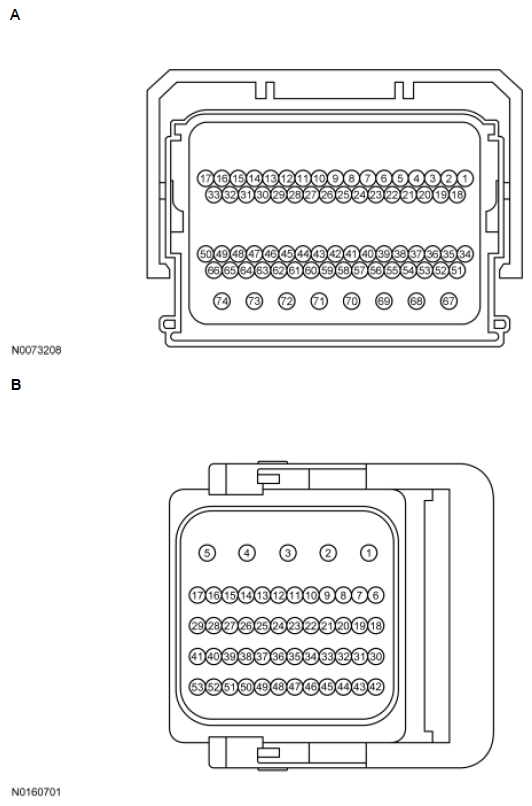

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-650/F-750 | A | 32 19 |
FPM FPC |
| Transit | B | 14 | FPC |
| All other vehicles | A | 18 32 19 |
FP FPM FPC |
| Pin | Circuit |
|---|---|
| 31 | FPM (Fuel Pump Monitor) |
