Ring Gear Backlash Adjustment
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| Dial Indicator |
|---|
Adjustment
- Remove the differential housing cover. Refer to: Differential Housing Cover .

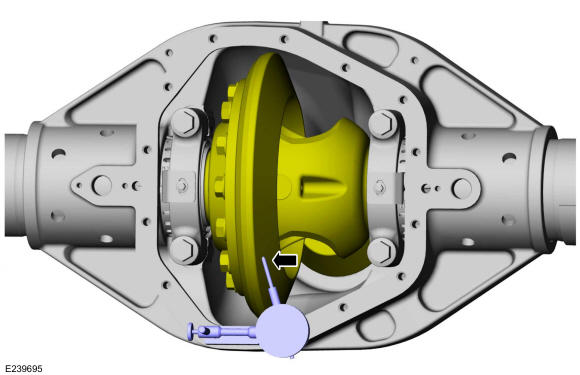

- Install the dial indicator gauge with holding fixture, with the dial indicator at around 90 degree angle from the ring gear tooth.. Use the General Equipment: Dial Indicator

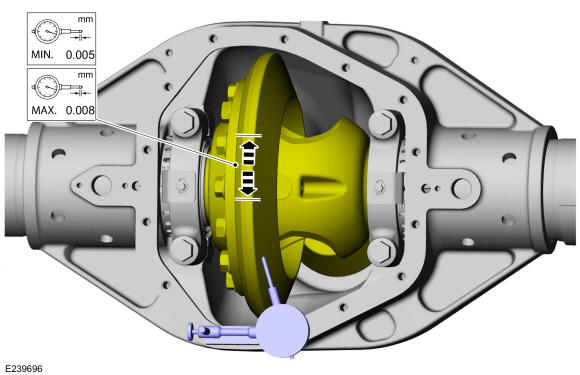

- Using the dial indicator check the ring gear backlash. Rotate the ring gear and carrier back and forth through the free play only. Refer to: Specifications .. Use the General Equipment: Dial Indicator
- To correct for high or low backlash, adjust the differential bearing preload adjusters equal amount in the same direction.
- If a backlash correction is to be made, adjust the differential bearing preload adjusters equal amount in the same direction. Refer to: Differential Carrier .

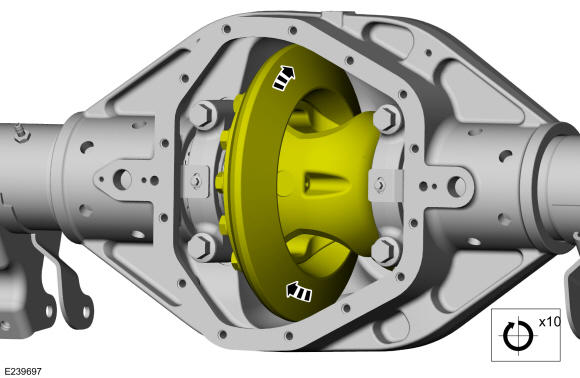

- Rotate the differential several times, to assure the differential assembly rotates freely.
- Using the dial indicator gauge with holding fixture, do a final check of the ring gear backlash.. Use the General Equipment: Dial Indicator
- Verify an acceptable ring gear tooth pattern check. Refer to: Rear Drive Axle and Differential .
- Install the differential housing cover. Refer to: Differential Housing Cover .
