Differential Fluid Level Check
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If draining is needed.

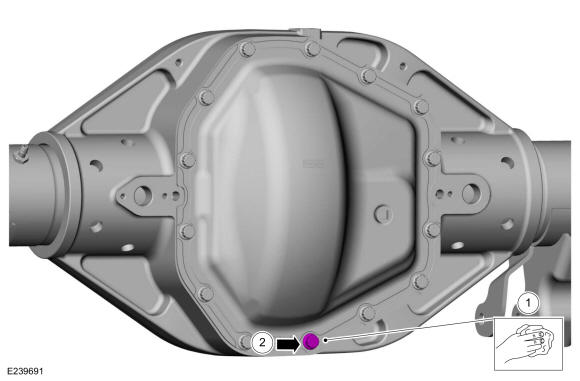

- Clean the differential fluid drain plug.
- Remove the differential fluid drain plug.
Torque: 66 lb.ft (90 Nm)
-

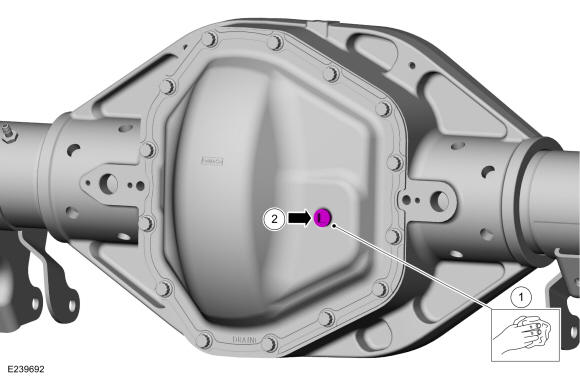

- Clean the differential fluid fill plug.
- Remove the differential fluid fill plug.

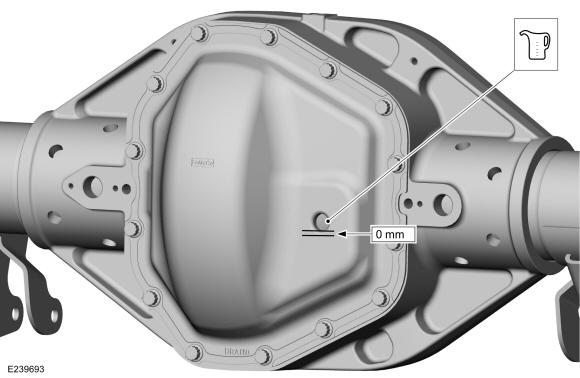

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be level with the fluid level fill plug opening. Refer to: Specifications .
Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

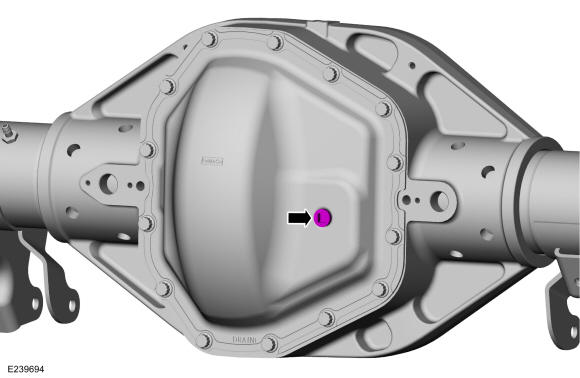

- Install the differential fluid fill plug.
Torque: 25 lb.ft (34 Nm)
