Rear Seat RH - Super Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

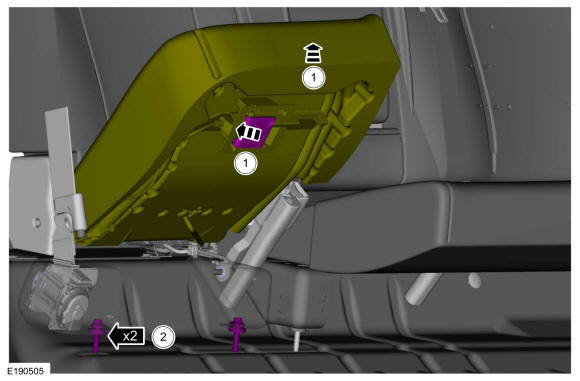

- Remove the seat front bolts.
- Using the seat cushion latch handle, raise the cushion.
- Remove the bolts.
Torque: 19 lb.ft (26 Nm)
- Pull the backrest release strap and fold the seat backrest down.

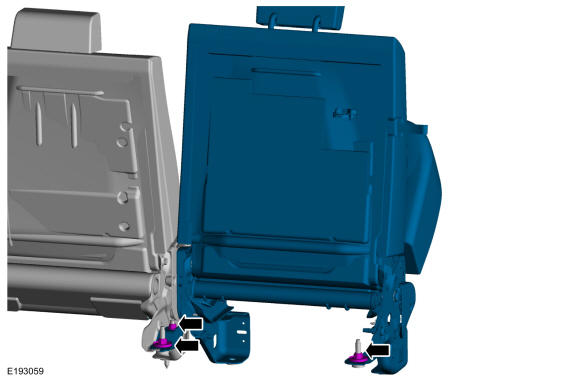

- Remove the seat rear nuts. Remove the seat.
Torque: 59 lb.ft (80 Nm)
