Rear Seat RH - Crew Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the seat front bolts.
- Using the seat cushion latch handle, raise the cushion.
- Remove the bolts.
Torque: 26 lb.ft (35 Nm)
- Pull the backrest release strap and fold the seat backrest down.
- Release the hook-and-loop strap and remove the vehicle jack.
Vehicles with inflatable seatbelts
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

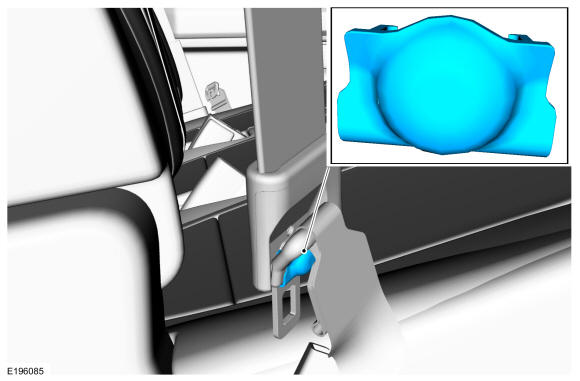

- Remove the lower seatbelt anchor bolt cover.

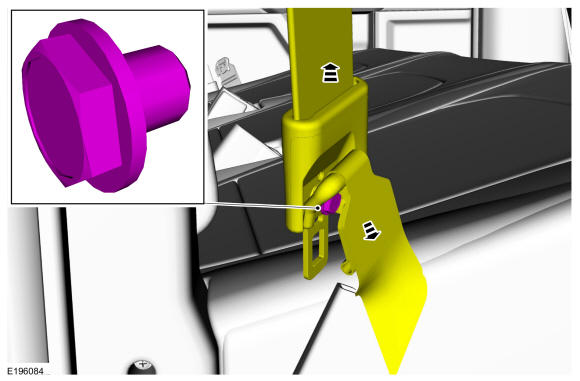

- Remove the anchor bolt and separate the upper seatbelt from the lower seatbelt.
Torque: 71 lb.in (8 Nm)
Vehicles without inflatable seatbelts

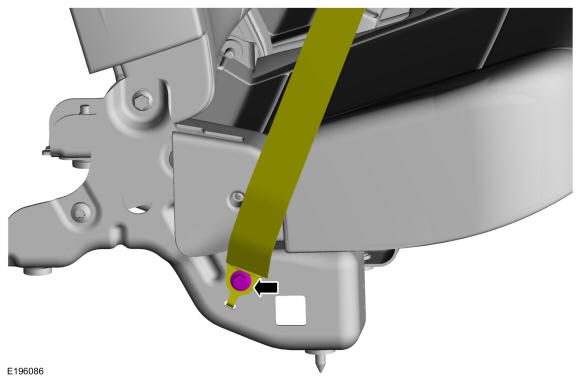

- Remover the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)
Vehicles with heated seats or inflatable seatbelts

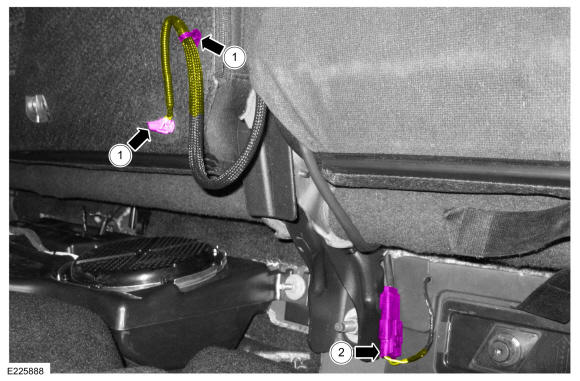

- Disconnect the electrical connector(s).
- If equipped. Disconnect the heated seat electrical connector and detach the wiring harness retainer.
- If equipped. Disconnect the inflatable seatbelt buckle switch electrical connector.
All vehicles
- Remove the seat rear nuts. Remove the seat.
Torque: 59 lb.ft (80 Nm)
