Rear Seat Latch: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear seat. Refer to: Rear Seat LH - Super Cab . Refer to: Rear Seat RH - Super Cab . Refer to: Rear Seat LH - Crew Cab . Refer to: Rear Seat RH - Crew Cab .
-
NOTE: Cushion cover and foam removed for clarity.

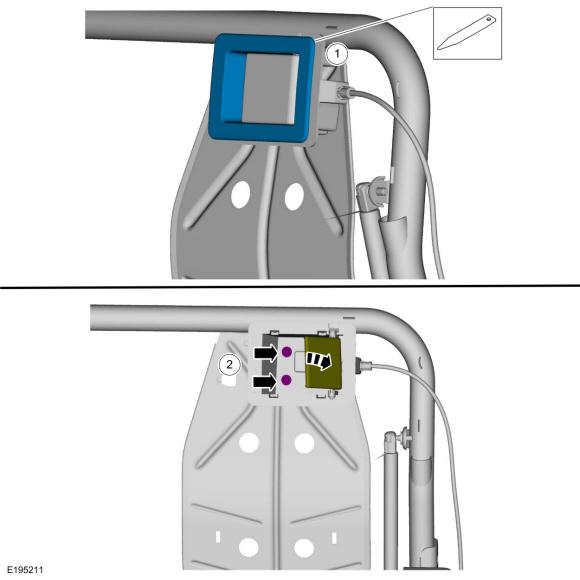

Remove the seat latch handle.
- Remove the cushion latch handle bezel from the cushion.
- Remove the fasteners located behind the cushion latch handle. Use the General Equipment: Interior Trim Remover

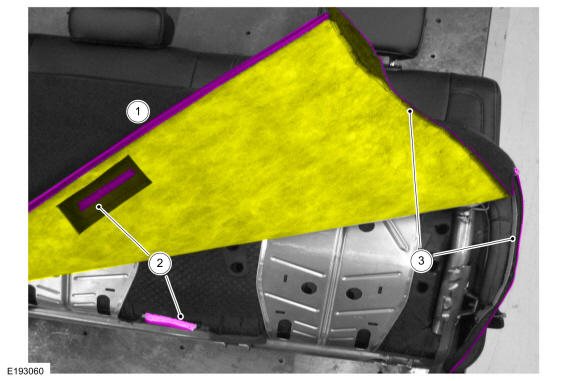

- Open the outboard side of the cushion cover.
- Release the cushion lower J-clip.
- Release the hook-and-loop strip.
- Unzip and open the outboard side of the cushion cover.
-
NOTE: Cushion cover and foam removed for clarity.

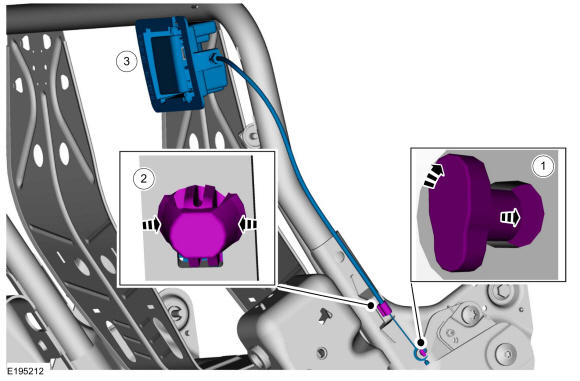

Remove the latch assembly.
- Rotate the latch cable end to align with the slot in the lever and pull the cable end through the slot.
- Press in on the cable retainer to release it from the cushion frame.
- Remove the latch from the cushion frame.
Vehicles with inflatable seatbelts

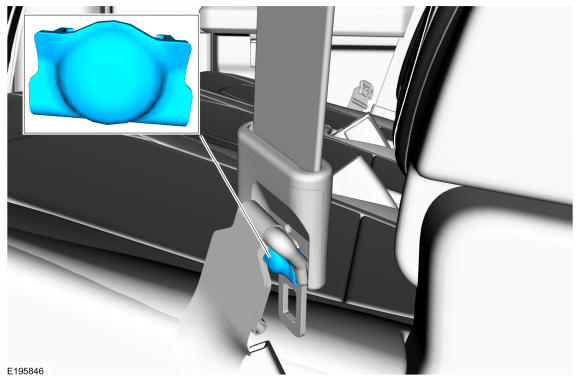

- Remove the lower anchor bolt cover.

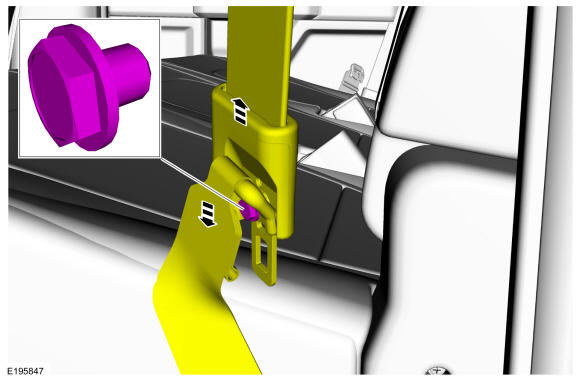

- Remove the anchor bolt and separate the upper seatbelt from the lower seatbelt.
Torque: 71 lb.in (8 Nm)

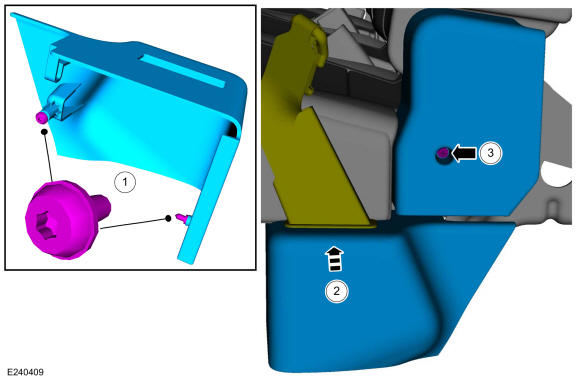

- Remove the lower seatbelt retractor cover and the upper side shield.
- Remove the screws.
- Remove the cover while feeding the seatbelt through the opening.
- Remove the screw and the upper side shield.
Vehicles without inflatable seatbelts

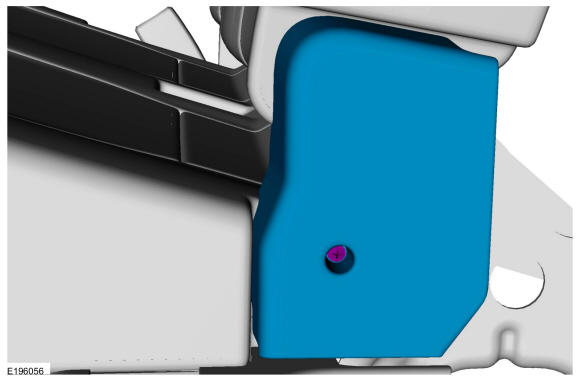

- Remove the outboard side shield screw and remove the side shield.

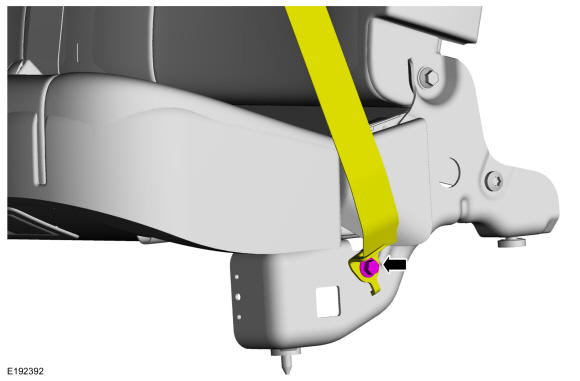

- Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)
All vehicles

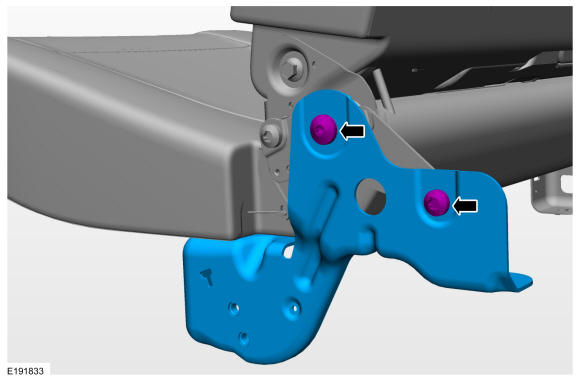

- Remove the bolts and the outboard riser.
Torque: 24 lb.ft (32 Nm)

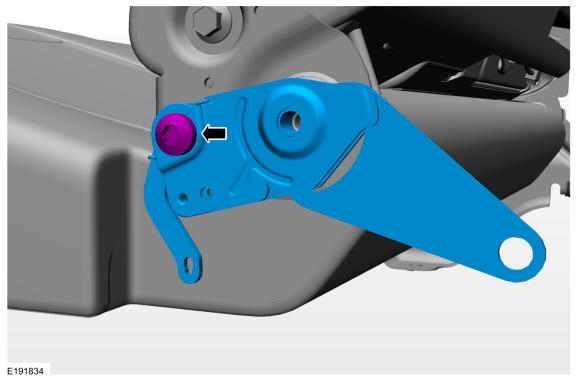

- Remove the bolt and the cushion latch assembly.
Torque: 24 lb.ft (32 Nm)
