Rear Seat LH - Crew Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH seat. Refer to: Rear Seat RH - Crew Cab .

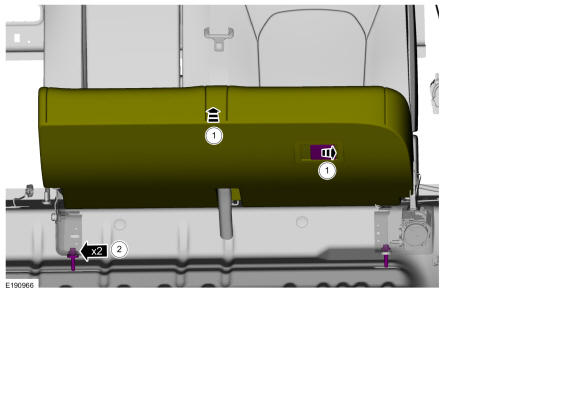

Remove the seat front bolts.
1. Using the seat cushion latch handle, raise the seat cushion.
2. Remove the bolts.
  Torque: 35 lb.ft (47 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles with inflatable seatbelts
Remove the lower anchor bolt cover.

Courtesy of FORD MOTOR COMPANY
Remove the anchor bolt and separate the upper seatbelt from the lower seatbelt.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without inflatable seatbelts
Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: During installation the striker should be in its lowest position for the latch to engage.

Fold the LH rear seat backrest down.
1. Raise the seat cushion.
2. Release the backrest latch.
3. Fold the backrest down.
Courtesy of FORD MOTOR COMPANY

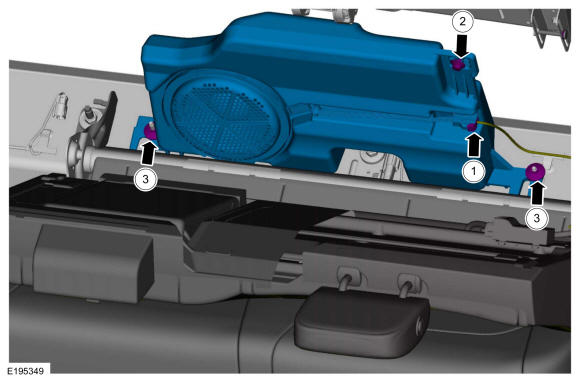

If equipped. Remove the subwoofer.
1. Disconnect the electrical connector.
2. Remove the bolt.
  Torque: 62 lb.in (7 Nm)
3. Remove the nuts.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

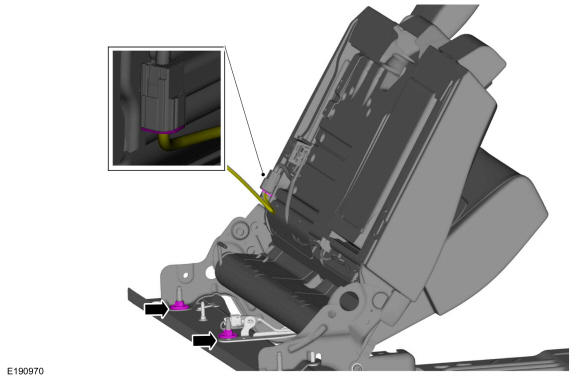

Disconnect the heated seat electrical connector and remove the seat rear bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

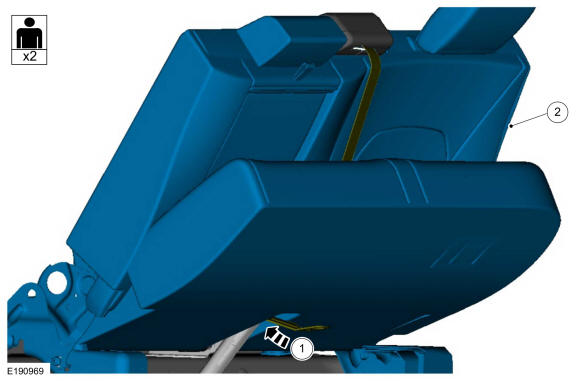

Remove the seat.
1. Route the center seatbelt through the cushion opening.
2. Remove the seat.

Courtesy of FORD MOTOR COMPANY
