Rear Seat Cushion Cover - Crew Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat. Refer to: Rear Seat RH - Crew Cab . Refer to: Rear Seat LH - Crew Cab .
Remove the cushion latch handle bezel from the cushion. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

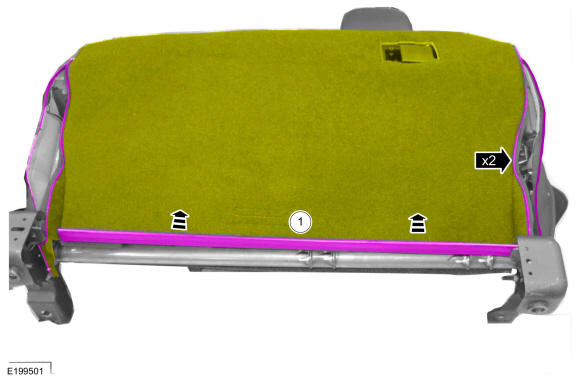

Release the lower cushion cover.
1. Release the cushion cover lower J-clip.
2. Unzip the cushion cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam.

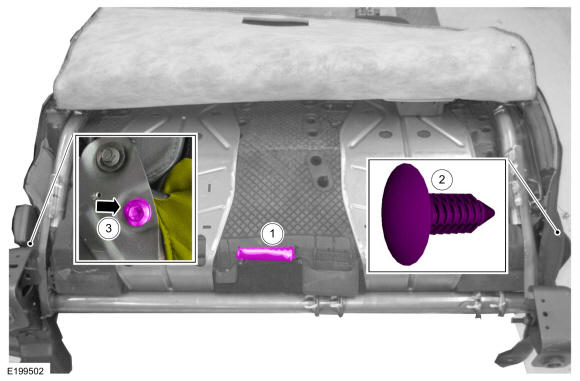

Remove the inboard and outboard cushion cover fasteners.
1. Release the hook-and-loop strip.
2. Remove the outboard cushion cover pushpin.
3. Remove the inboard pivot bolt.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

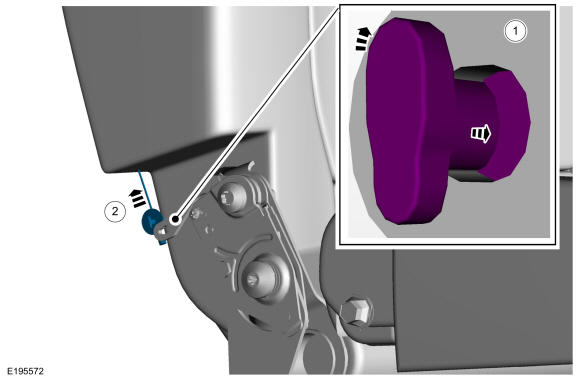

Release the latch cable and route it through the cushion cover.
1. Rotate the latch cable end to align with the slot in the lever and pull the cable end through the slot.
2. Route the latch cable through the cushion cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam.

NOTE: Use care when separating the seat cushion cover from the hook-and-arrow strip or the hook can be torn from the foam.

Remove the cushion cover from the foam.
1. Release the hook-and-arrows.
2. Release the hook-and-loop strips.

Courtesy of FORD MOTOR COMPANY
