Rear Seat Backrest Cover - Crew Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.
  1. Remove the seat. Refer to: Rear Seat RH - Crew Cab . Refer to: Rear Seat LH - Crew Cab .

    LH seat

  2. Remove the backrest. Refer to: Rear Seat Backrest - Crew Cab .

    All seats

  3. Remove the head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .
  4. If equipped. Remove the armrest. Refer to: Rear Seat Armrest - Crew Cab .

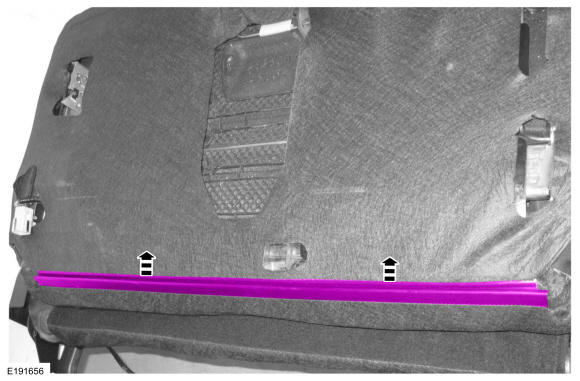

  5. Release the backrest cover lower J-clip.
    GFD206670Courtesy of FORD MOTOR COMPANY

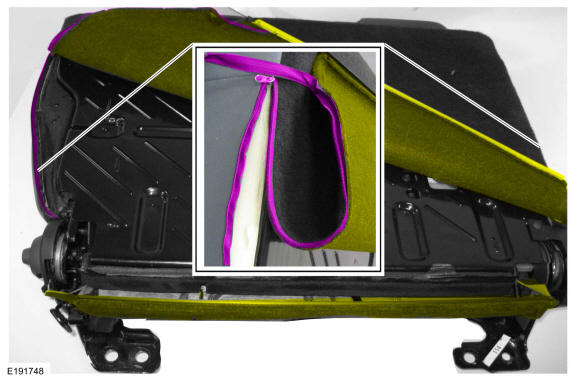

  6. On both sides, unzip the backrest cover.
    GFD206671Courtesy of FORD MOTOR COMPANY

    LH seat

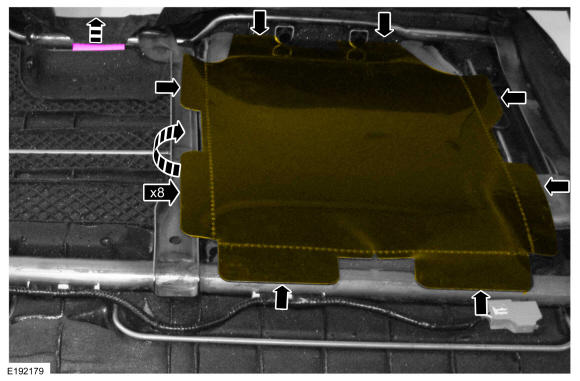

  7. Release the center backrest J-clip and armrest cavity retainers.
    GFD206673Courtesy of FORD MOTOR COMPANY

    All seats

  8. NOTE: Use care when separating the seat backrest cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam.
    NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook can be torn from the foam.

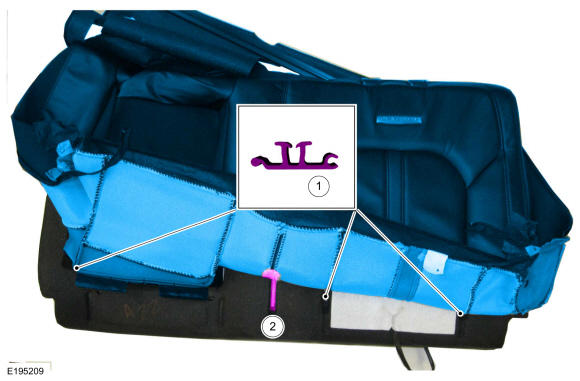

    Remove the backrest cover from the foam.

    1. Release the hook-and-arrows.
    2. Release the hook-and-loop strip.

GFD206674Courtesy of FORD MOTOR COMPANY
