Rear Seat Backrest - Crew Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the seat. Refer to: Rear Seat LH - Crew Cab . Refer to: Rear Seat RH - Crew Cab .

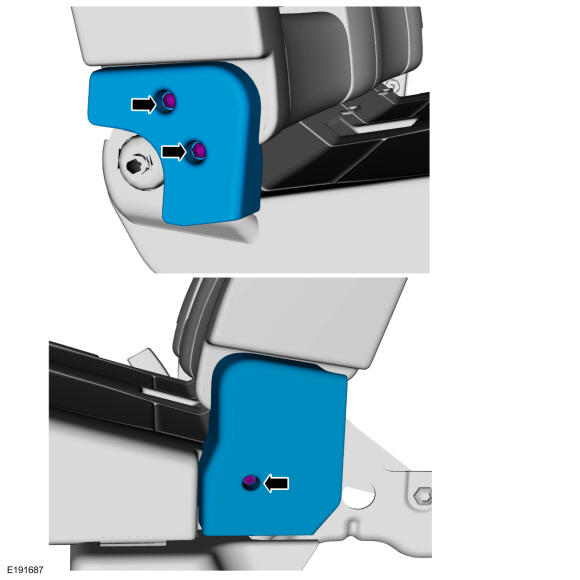

- Remove the inboard and outboard cushion side shield screws and remove the side shields.

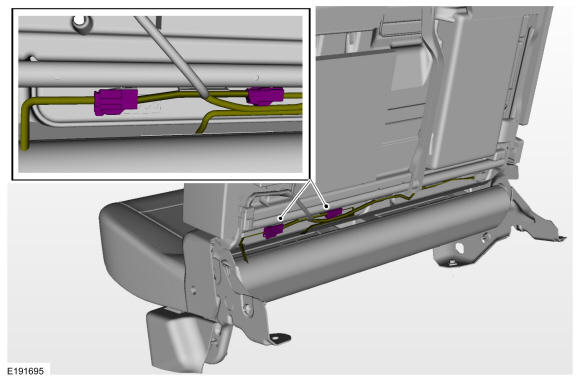

- If equipped. Disconnect the heated seat electrical connectors.

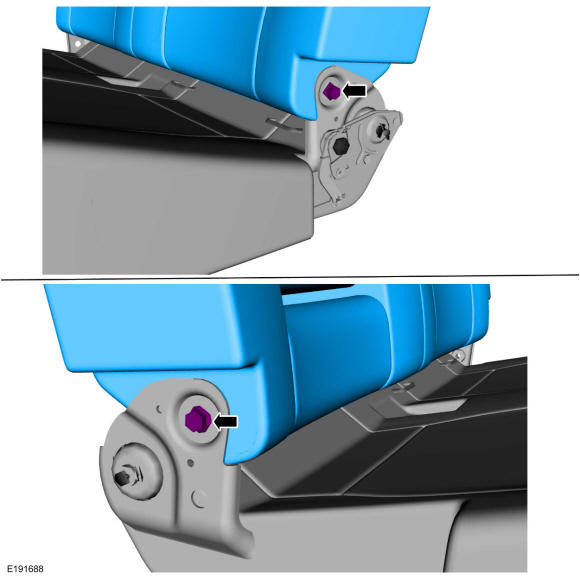

- Remove the inboard and outboard pivot bolts. Remove the backrest.
Torque: 18 lb.ft (25 Nm)
