Rear Seat Armrest - Crew Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

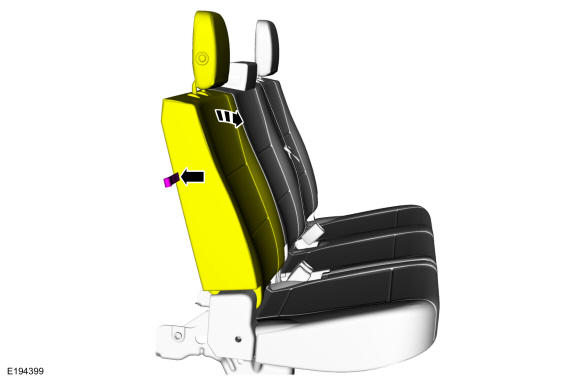

- Pull the backrest release strap and fold the RH seat backrest down.
- Remove the armrest.
- Through the opening in the backrest cover and foam, remove the armrest bolt.
Torque: 18 lb.ft (25 Nm)
- Lift and rotate the armrest to release the guide pins from both sides of the armrest.
- Through the opening in the backrest cover and foam, remove the armrest bolt.
