Rear Head Restraint Guide Sleeve: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH seat shown, RH similar.
-
NOTE: Follow the unique instructions or graphics for this step in installation.

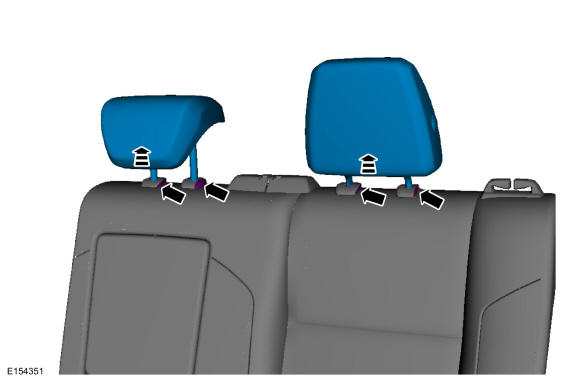

While pressing the primary and secondary head restraint release buttons, lift and remove head restraint(s).
-
NOTE: Typical head restraint guide sleeve shown, others similar.

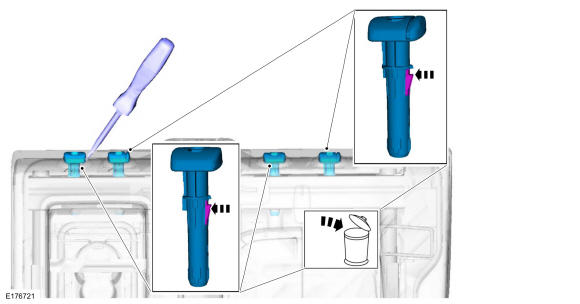

Release the head restraint guide sleeve locking tabs. Remove the head restraint guide sleeve and discard. Use the General Equipment: Flat Headed Screw Driver
