Rear Head Restraint Guide Sleeve: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.NOTE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeve at the correct position may result in component failure.

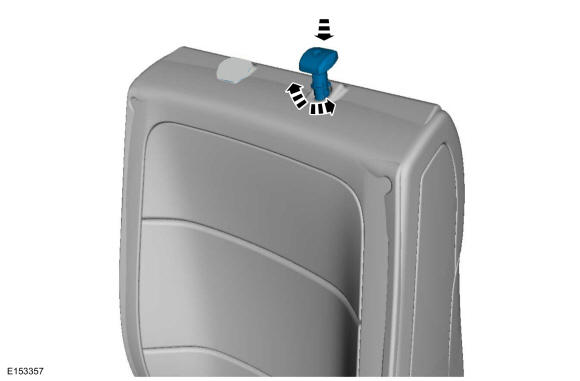

Allow the head restraint guide sleeve to slide freely through the backrest foam and backrest trim cover, twist the head restraint guide sleeve while pushing it into the backrest frame hole as far as it will go, using hand pressure. By hand, press the head restraint guide sleeve downward into the backrest frame hole.

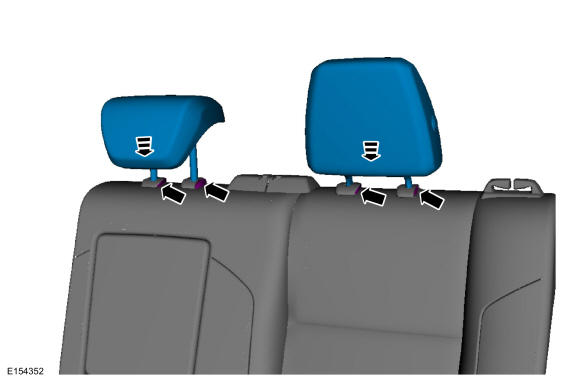

- While pressing the primary and secondary head restraint guide sleeve buttons, install the head restraints.
