Heated Rear Seat Switch - Crew Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

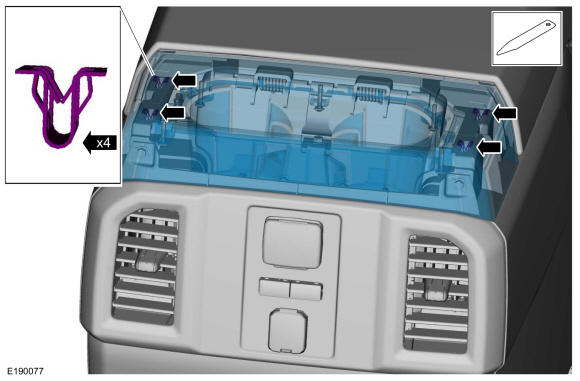

- Lift the cup holder trim and release the locking clips. Remove the cup holder trim. Use the General Equipment: Interior Trim Remover
- Remove the heated seat switch.

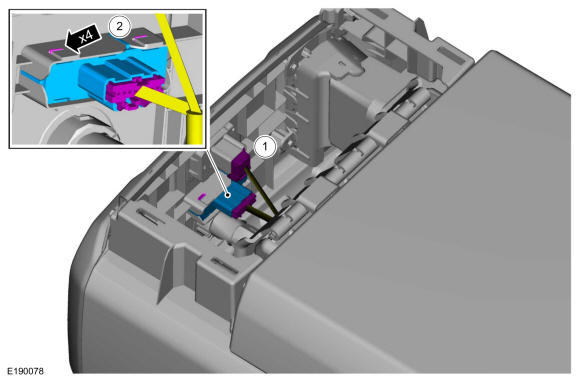

- Disconnect the power point electrical connector.
- Disconnect the heated seat switch electrical connector. Release the switch tabs and slide the switch rearward.
