Fuse and Relay Information

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

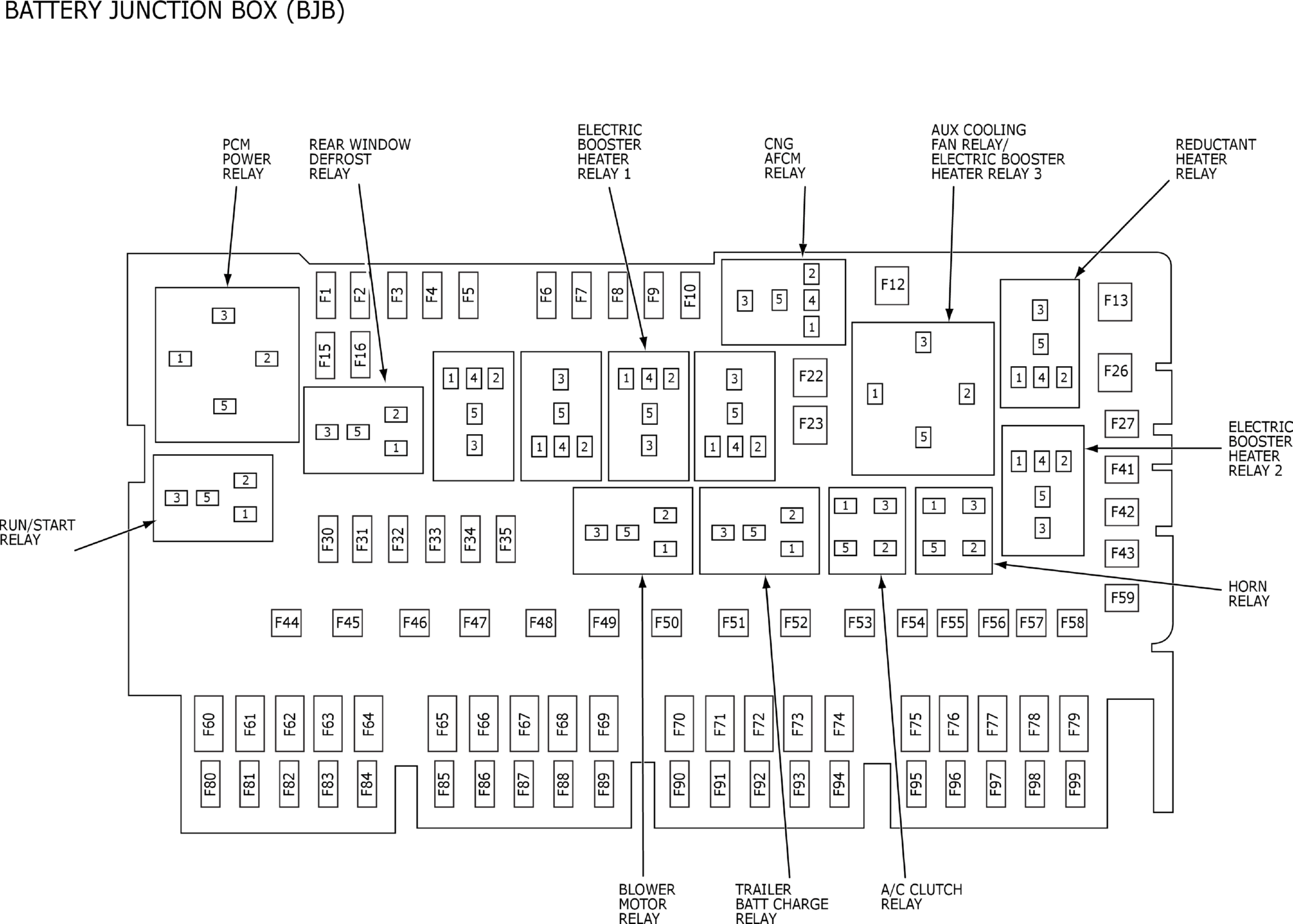

Fig 1: Battery Junction Box (BJB) Component Location
GFDW83173Courtesy of FORD MOTOR COMPANY

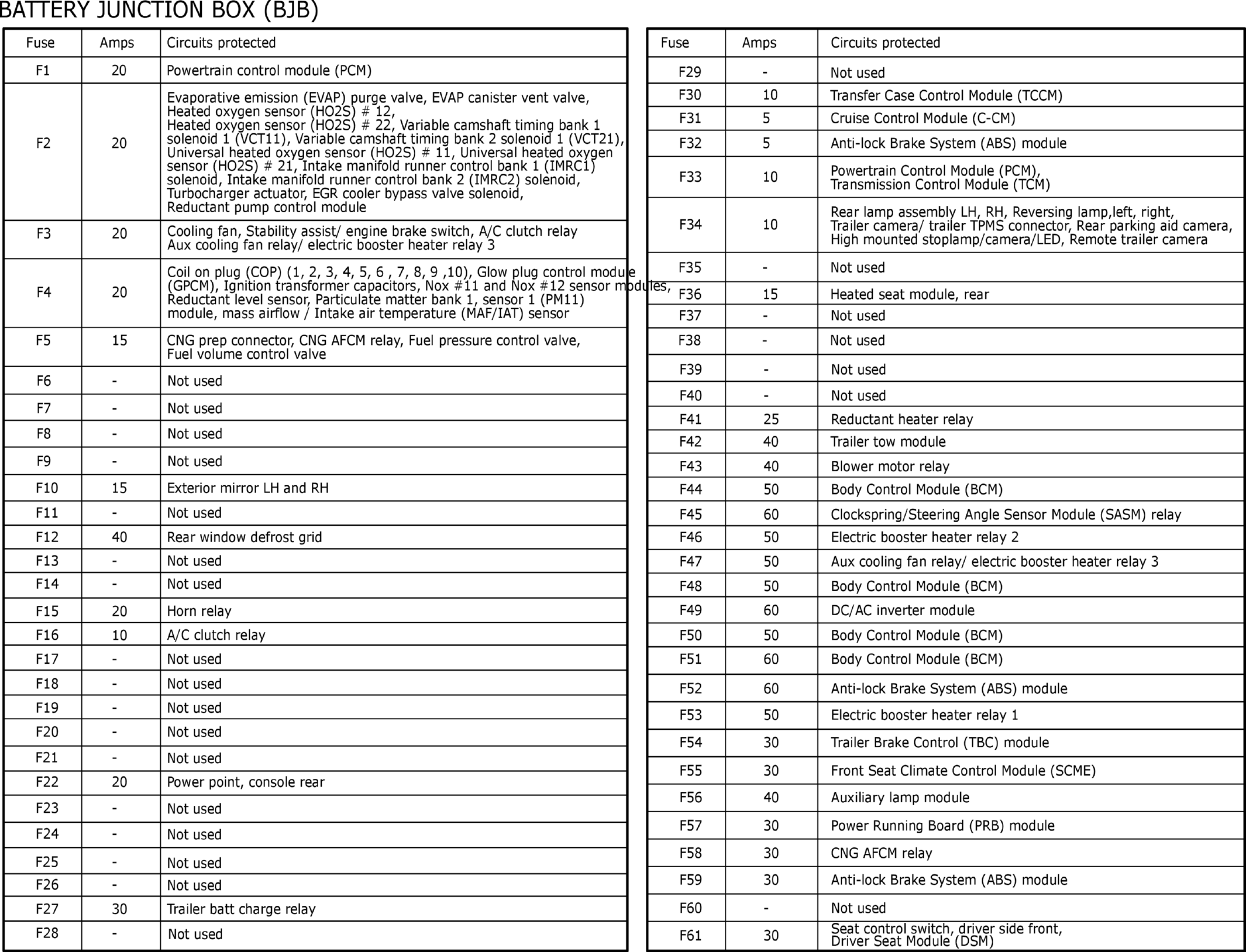

Fig 2: Battery Junction Box (BJB) Component Location Legend Chart (1 Of 2)
GFDW83174Courtesy of FORD MOTOR COMPANY

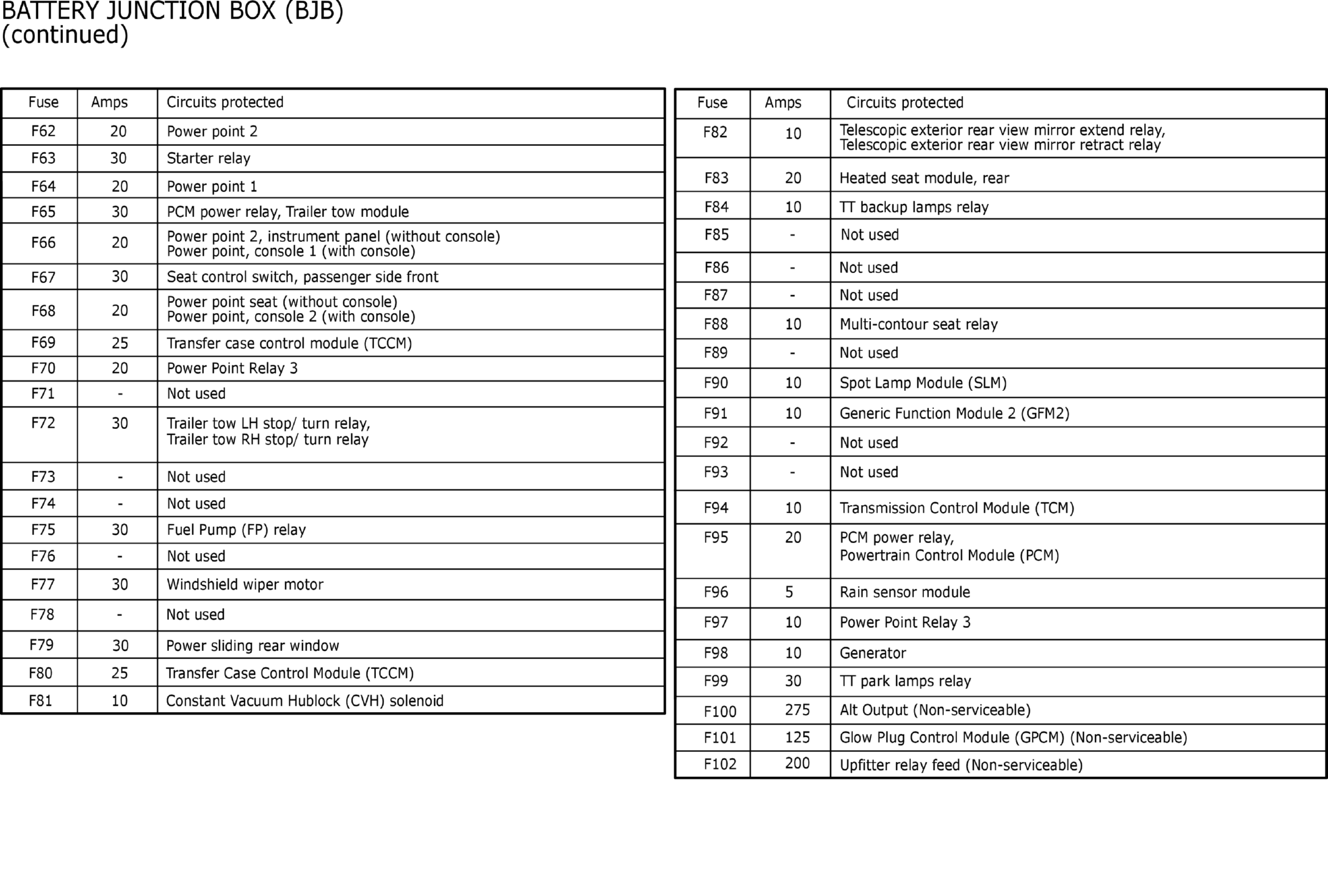

Fig 3: Battery Junction Box (BJB) Component Location Legend Chart (2 Of 2)
GFDW83175Courtesy of FORD MOTOR COMPANY

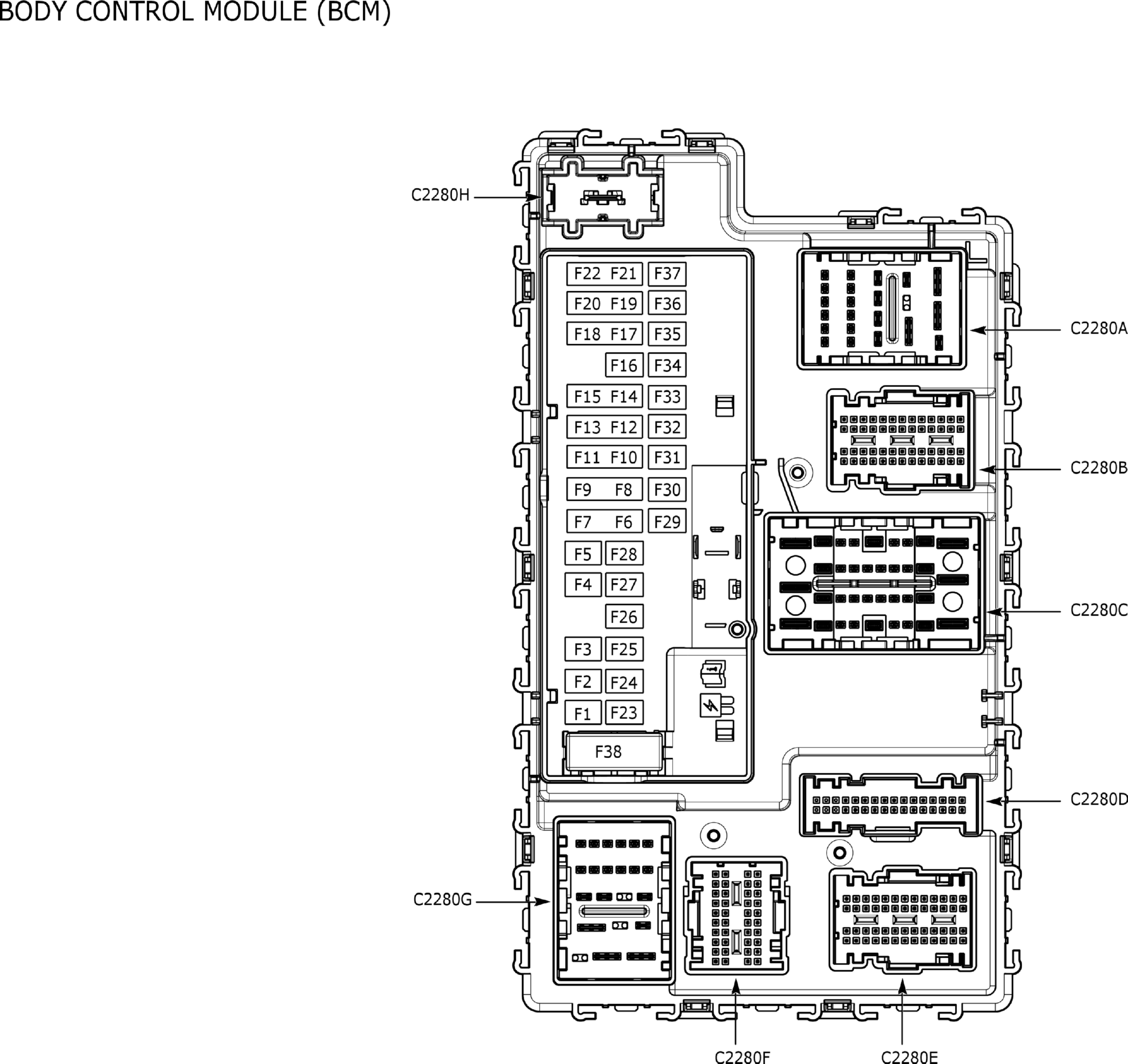

Fig 4: Body Control Module (BCM) Component Location
GFDW83176Courtesy of FORD MOTOR COMPANY

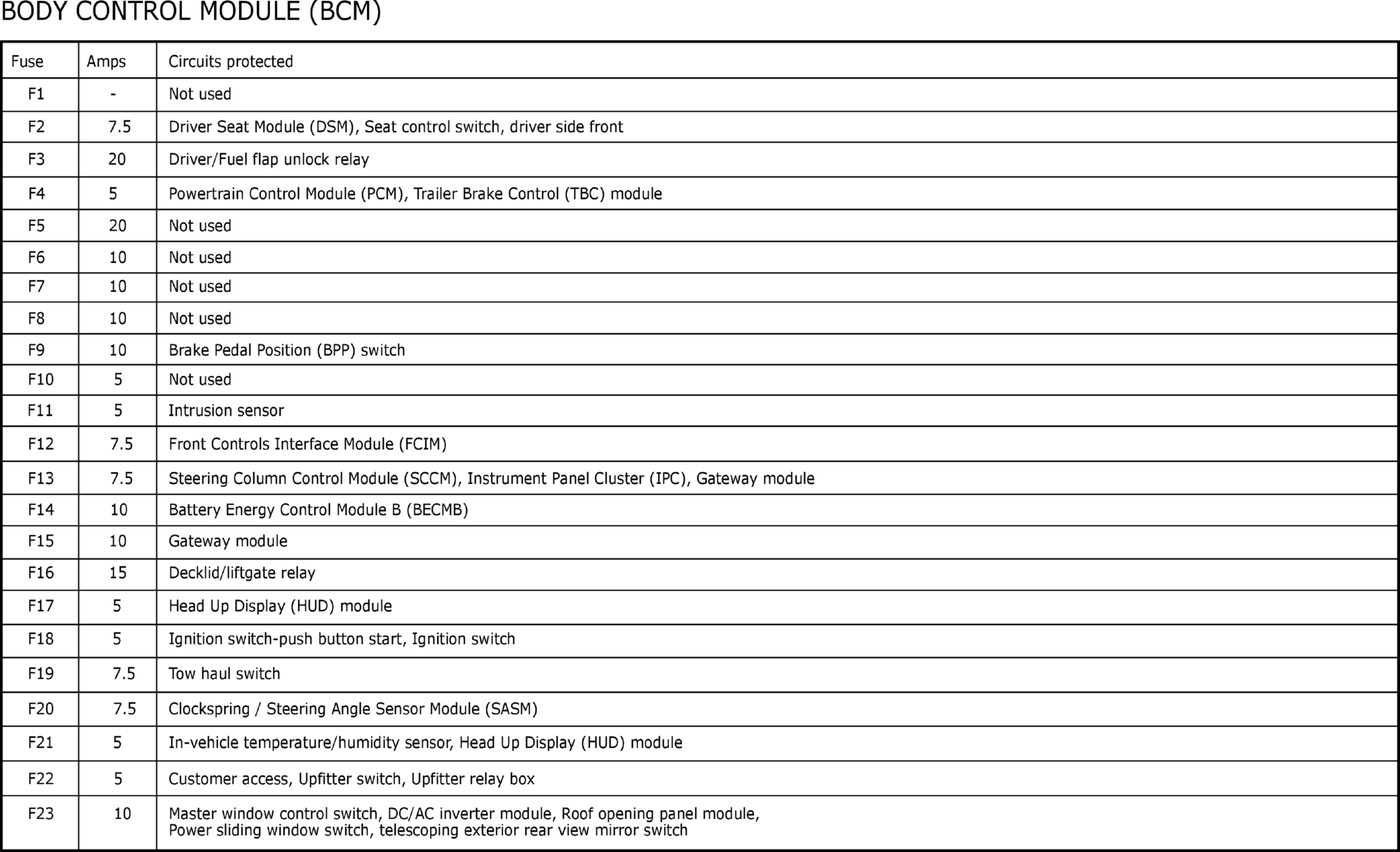

Fig 5: Body Control Module (BCM) Component Location Legend Chart (1 Of 2)
GFDW83177Courtesy of FORD MOTOR COMPANY

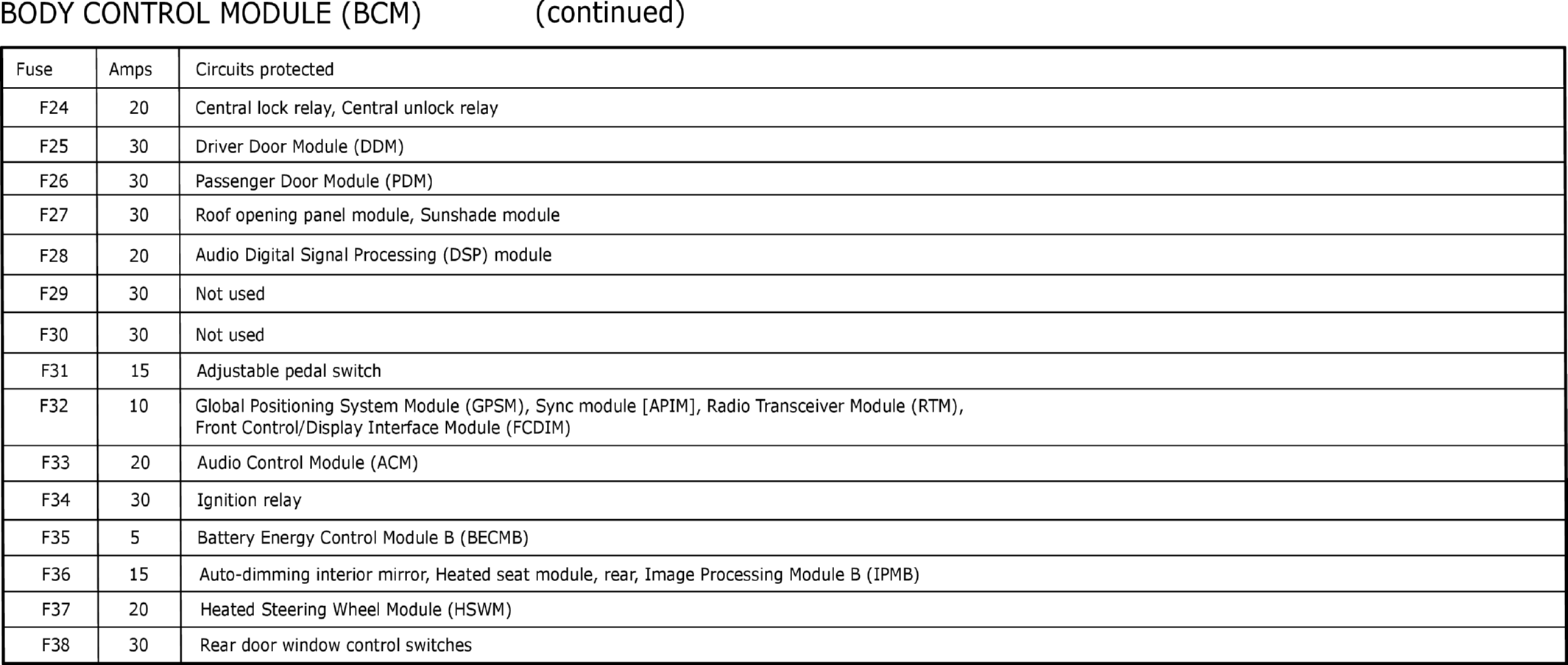

Fig 6: Body Control Module (BCM) Component Location Legend Chart (2 Of 2)
GFDW83178Courtesy of FORD MOTOR COMPANY

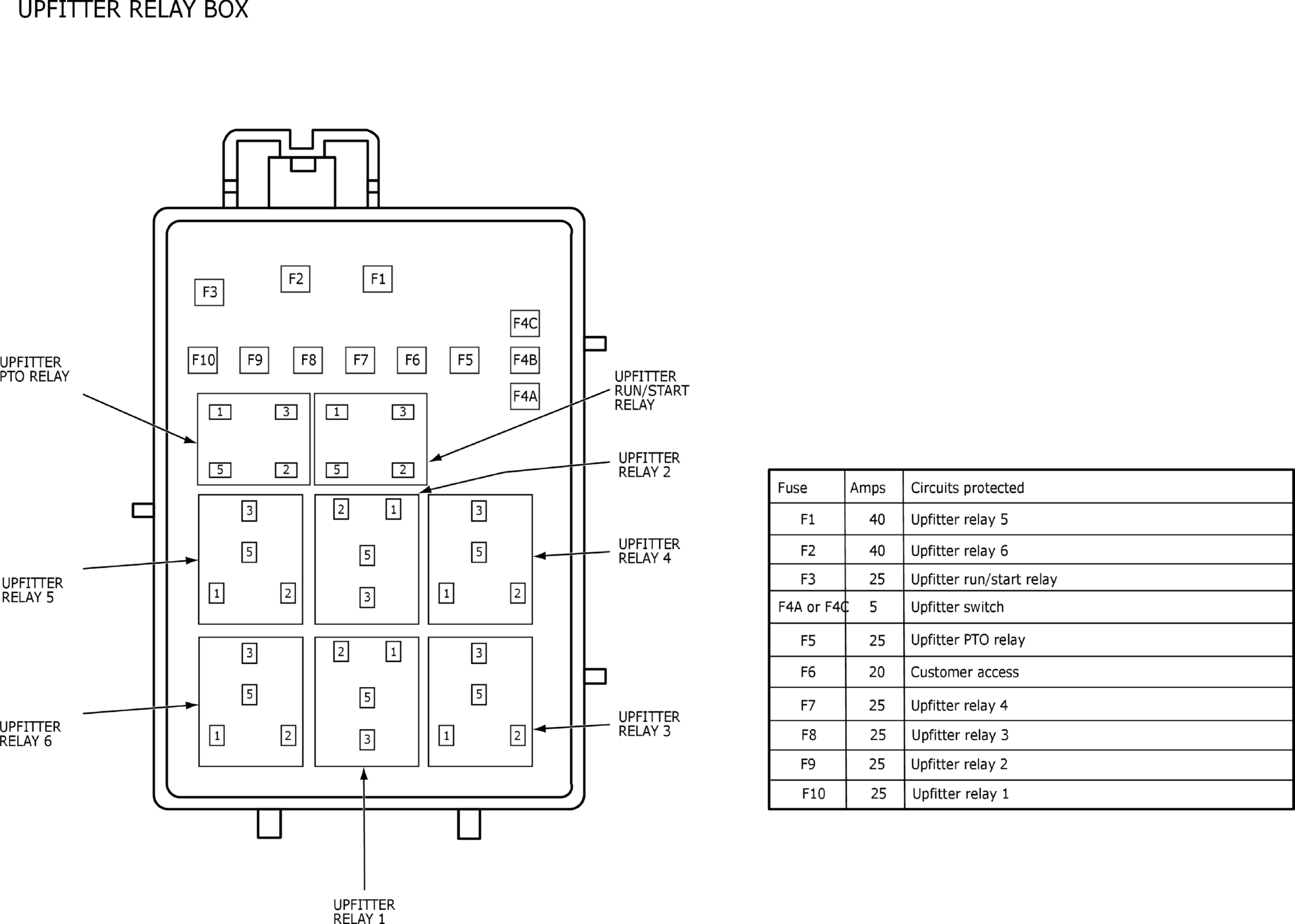

Fig 7: Upfitter Relay Box Component Location
GFDW83179Courtesy of FORD MOTOR COMPANY
