Differential Bearings: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the differential carrier. REFER to: Differential Carrier .
Remove the drive pinion flange and seal. Refer to: Drive Pinion Flange and Seal .

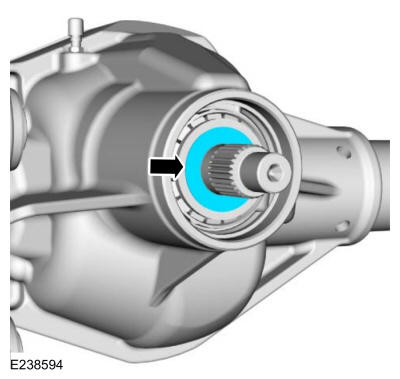

Remove the outer drive pinion oil slinger.

Courtesy of FORD MOTOR COMPANY

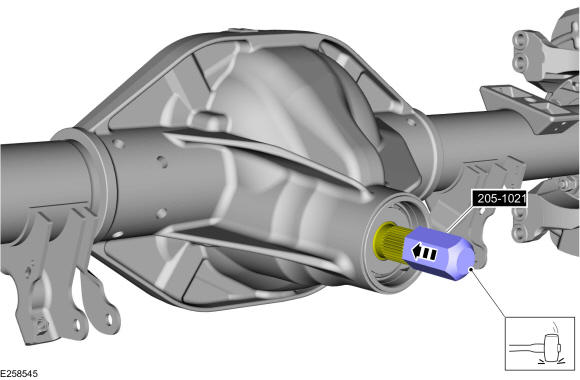

Using the special tool and a soft face mallet, tap the drive pinion free of the of the drive pinion outer bearing.
Use Special Service Tool: 205-1021 Protector, Pinion Thread.

Courtesy of FORD MOTOR COMPANY

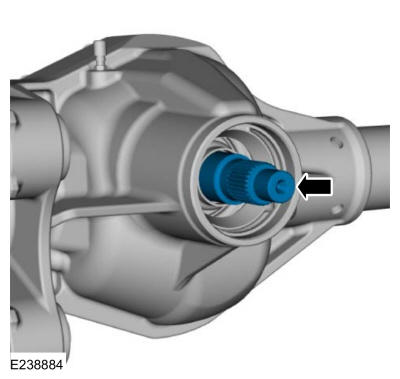

Remove the outer drive pinion bearing.

Courtesy of FORD MOTOR COMPANY
Remove the pinion gear.

Courtesy of FORD MOTOR COMPANY

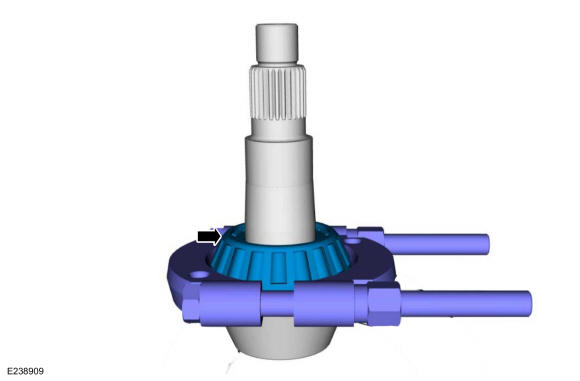

Remove the inner drive pinion bearing.

Courtesy of FORD MOTOR COMPANY

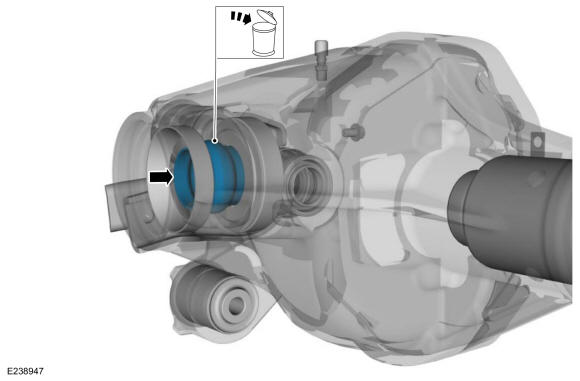

Remove and discard the drive pinion collapsible spacer.

Courtesy of FORD MOTOR COMPANY

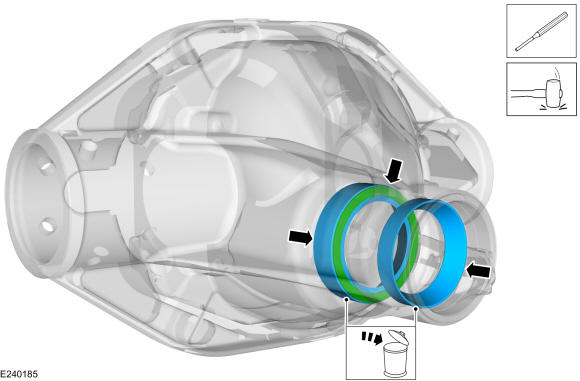

Using the general equipment, remove and discard the drive pinion bearing cups and remove the pinion depth shim.
Use the General Equipment: Copper Hammer

Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

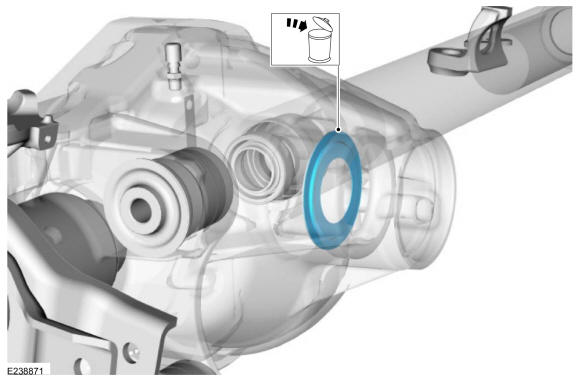

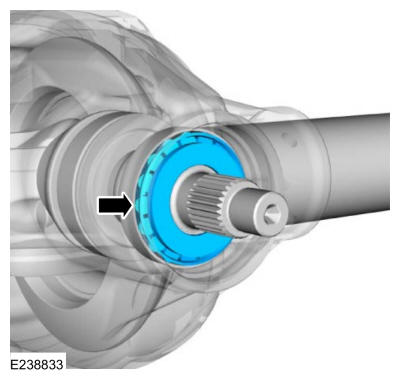

If necessary, remove and discard the drive pinion oil baffle.

Courtesy of FORD MOTOR COMPANY

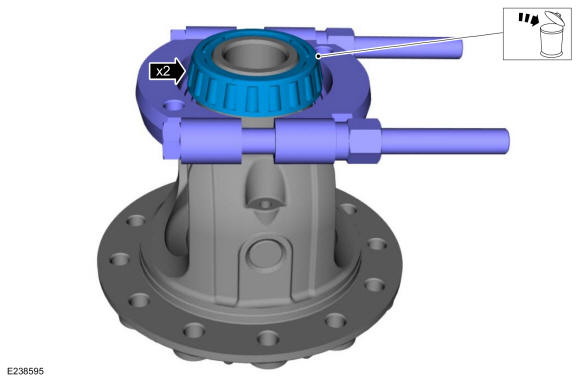

Using the general equipment, remove and discard the differential bearings.
Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

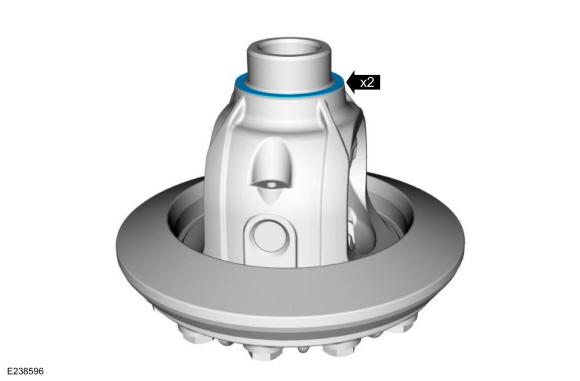

NOTE: Wire the shims together and mark from which side they were removed.

Remove the differential bearing shims.

Courtesy of FORD MOTOR COMPANY
