Axle Shaft Seal: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel bearing and wheel hub assemblies. REFER to: Front Wheel Bearing and Wheel Hub .

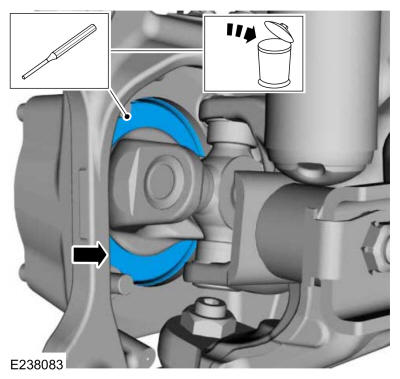

- Using a special tool, drive the axle shaft knuckle seal out of the wheel knuckle. Discard the seal.
Use the General Equipment: Punch

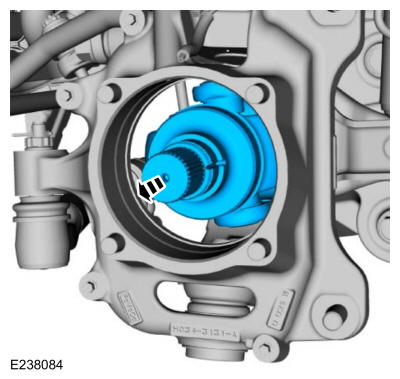

- Remove the axle shaft and knuckle seal.
