Transfer Case Rear Seal: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles equipped with a slip yoke style driveshaft
- Remove the driveshaft. Refer to: Rear Driveshaft
.
Vehicles equipped with a flange style driveshaft
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

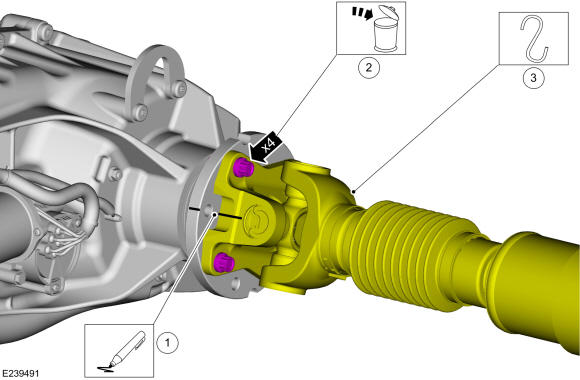

- Disconnect the driveshaft.
- Index mark the driveshaft and output shaft flange.
- Remove and discard the driveshaft to output flange bolts.
- Disconnect and support the driveshaft.

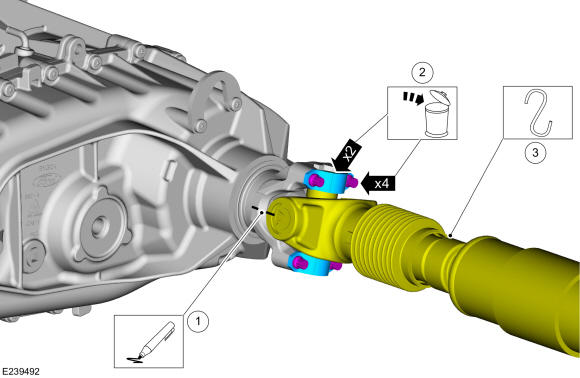

- Disconnect the driveshaft.
- Index mark the driveshaft and output shaft flange.
- Remove and discard the driveshaft to output flange bolts.
- Disconnect and support the driveshaft.
All vehicles

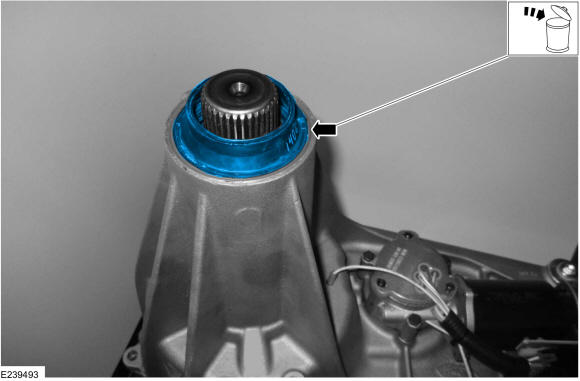

- Remove the rear output shaft seal.
