Wheel Studs - Vehicles With: Single Rear Wheels: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Remove the rear wheel hub assembly. Refer to: Wheel Hub .

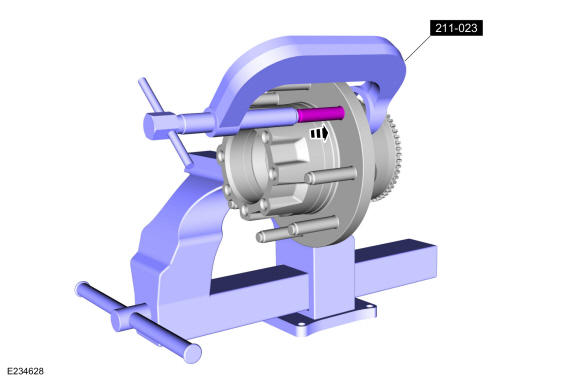

- Press the wheel stud from the wheel hub assembly. Use Special Service Tool: 211-023 (T74P-3044-A1) C-Frame and Screw. Use the General Equipment: Vise
