Wheel Studs - Vehicles With: Dual Rear Wheels: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the serrations on the new wheel stud are aligned with those made by the original wheel stud in the wheel hub assembly.

NOTE: Make sure that the wheel stud is completely seated against the hub flange.

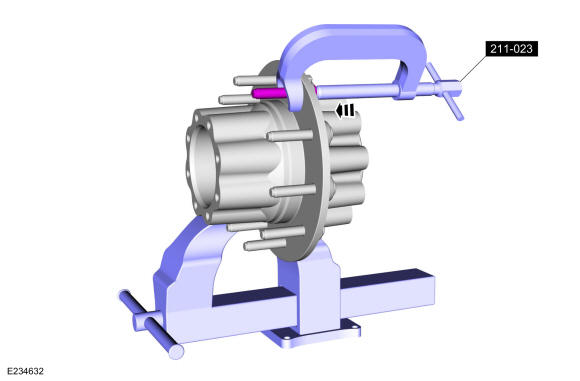

Press the wheel stud into the wheel hub assembly. Use Special Service Tool: 211-023 (T74P-3044-A1) C-Frame and Screw. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
Install the rear wheel hub assembly. Refer to: Wheel Hub .
