Rear Stabilizer Bar - F-250/F-350: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
On both sides.
1. NOTE: Hold the circular flange on the rear stabilizer link stud with locking pliers. Allowing the stud to turn could break the bond between the rubber isolator and the stud requiring link replacement.

  Remove and discard the stabilizer bar link lower nut. Use the General Equipment: Locking Pliers

  Torque: 76 lb.ft (103 Nm)
2. Position the stabilizer bar link aside.
Courtesy of FORD MOTOR COMPANY

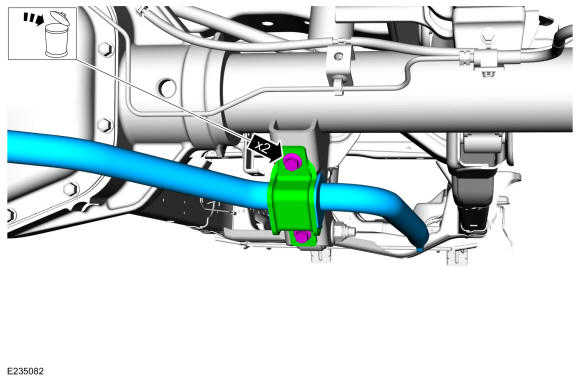

On both sides. Remove and discard the stabilizer bar bracket bolts, and remove the stabilizer bar brackets and the stabilizer bar.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
