Ball Joint: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel knuckle. Refer to: Wheel Knuckle .

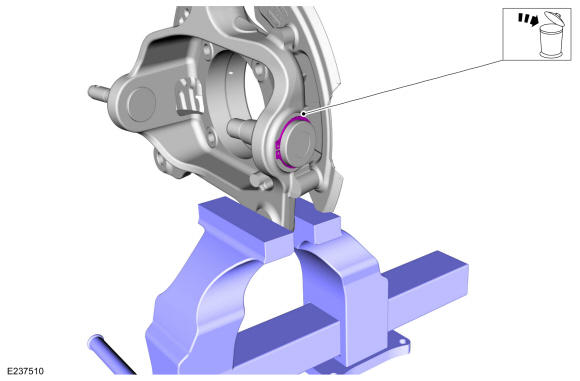

- Position the wheel knuckle in a vise and remove and discard the snap ring from the lower ball joint. Use the General Equipment: Vise Use the General Equipment: Snap Ring Pliers
-
NOTE: To avoid damage to the components, do not use heat to aid ball joint removal.

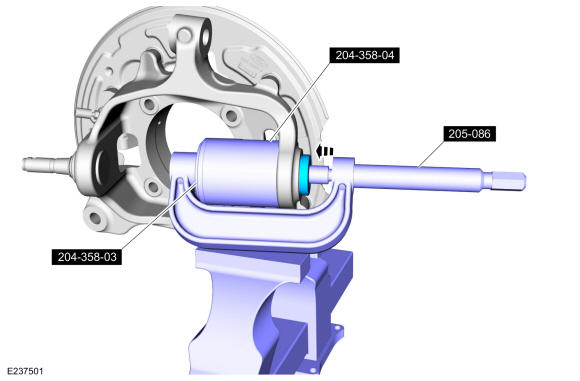

Remove the lower ball joint. Use Special Service Tool: 204-358 Remover/Installer, Ball Joint., 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw. Use the General Equipment: Vise

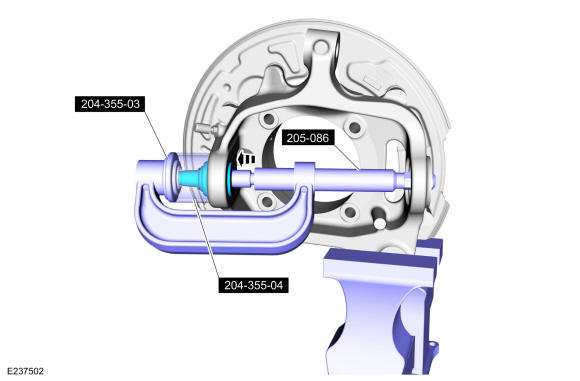

- Remove the upper ball joint. Use Special Service Tool: 204-355 Remover/Installer, Ball Joint., 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw. Use the General Equipment: Vise

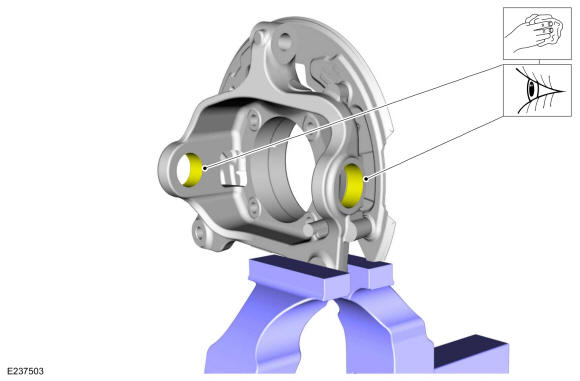

- Clean and inspect the wheel knuckle ball joint bore. Use the General Equipment: Vise
