Exhaust Intermediate Pipe: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Exhaust intermediate pipes will vary in configuration with different wheelbases. Typical application shown in illustration.

NOTE: Clean all exhaust connections before reassembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Typical application shown in illustration.

NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.

Loosen the catalytic converter-to-exhaust intermediate pipe clamp.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.

Loosen the exhaust intermediate pipe-to-rear muffler pipe clamp.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Typical application shown in illustration.

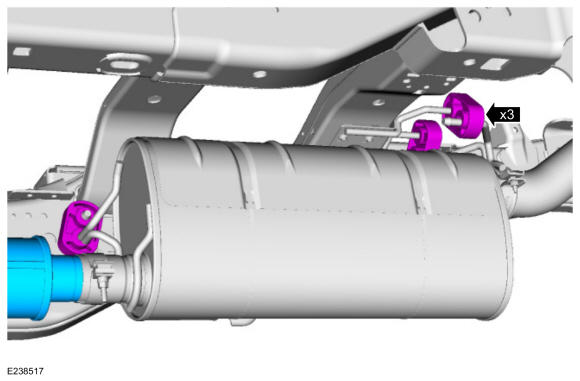

Disconnect the rear muffler isolators. Remove the intermediate pipe.

Courtesy of FORD MOTOR COMPANY
