Catalytic Converter: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Clean all exhaust connections before reassembly.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Typical application shown in illustration.
Disconnect the catalyst monitor sensor electrical connector.

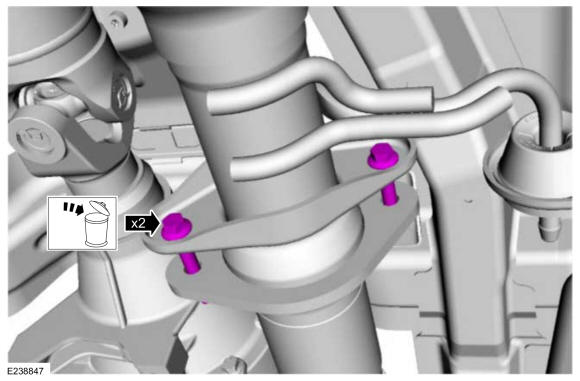

- Remove and discard the exhaust Y-pipe-to-catalytic converter bolts.
-
NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.
Loosen the catalytic converter-to-muffler clamp or, if equipped, the exhaust intermediate pipe clamp.
- Disconnect the catalytic converter from the rubber isolator and remove the catalytic converter.
