Trailer Hitch - Fifth Wheel: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the pickup bed, if equipped. Refer to: Pickup Bed .

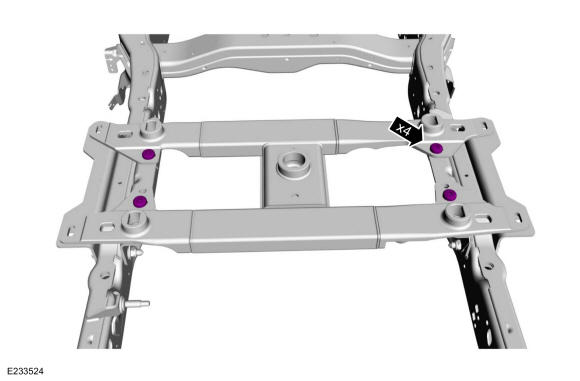

Remove the hitch-to-inner bracket bolts.
Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

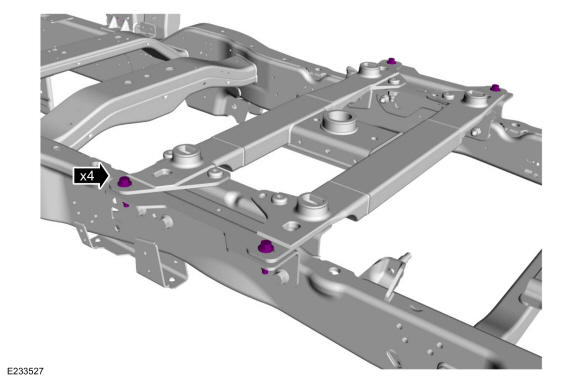

Remove the hitch-to-outer bracket bolts.
Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

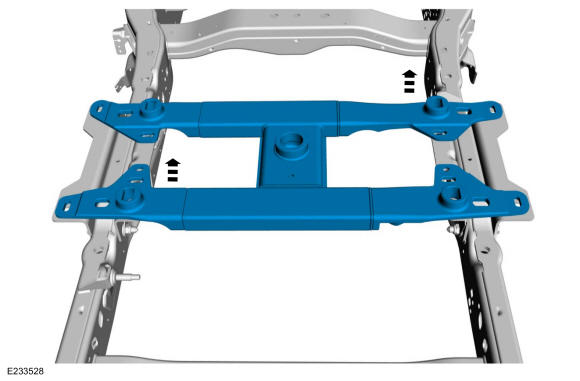

Remove the hitch assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

NOTE: The inner bracket is welded to the frame assembly and is not serviceable.

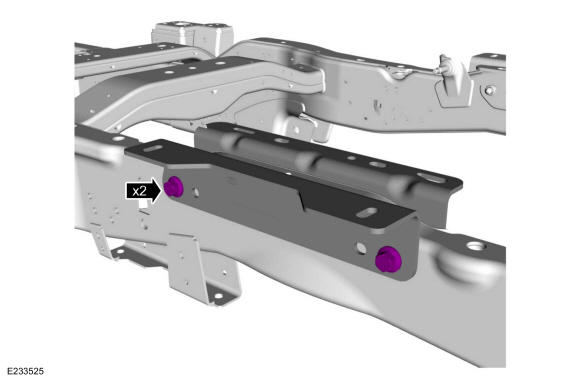

Remove the outer bracket bolts.

Torque: 184 lb.ft (250 Nm)

Courtesy of FORD MOTOR COMPANY

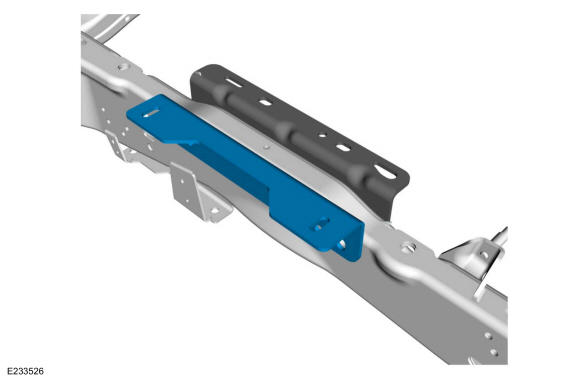

Remove the outer bracket as required.

Courtesy of FORD MOTOR COMPANY
