Body Mounts
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
The body support mounts:
- secure the body to the frame.
- cannot be lubricated during body support mount installation
- Body retainer cage nuts must be serviced as an assembly.
- Refer to the following illustrations for body bolt torque values.
NOTE:
Body mount bolts are NOT reusable due to torque plus angle securing on some of body mount locations.

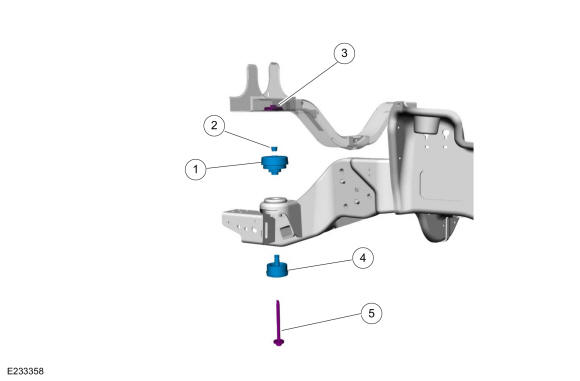

Front End Sheet Metal (FESM) Body Mount LH/RH
| Item | Description | Torque |
|---|---|---|
| 1 | Upper insulator | - |
| 2 | Cap | - |
| 3 | Body retainer cage nut | - |
| 4 | Lower insulator | - |
| 5 | Body mount bolt | 103 Nm (76 lb-ft) |

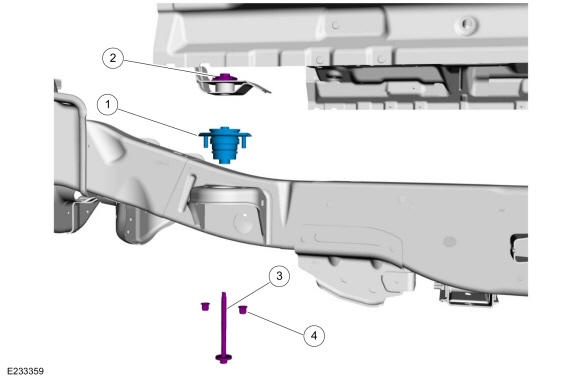

Body Mount - No. 1, (LH/RH All Cabs)
| Item | Description | Torque |
|---|---|---|
| 1 | Upper insulator | - |
| 2 | Body retainer cage nut | - |
| 3 | Body mount bolt | 103 Nm (76 lb-ft) Single Rear Wheel vehicle, 103 Nm (76 lb-ft) plus 90 ° angle Dual Rear Wheel vehicle |
| 4 | Bracket nut (2 required) | 63 Nm (46 lb-ft) |

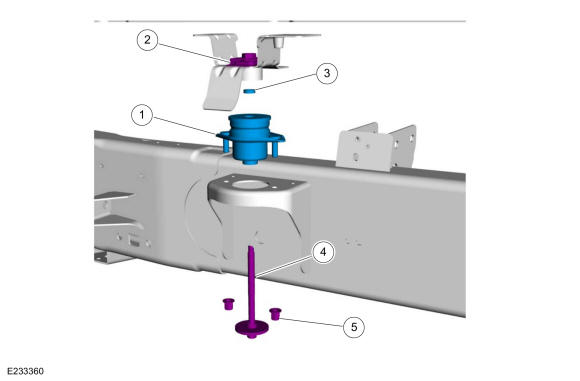

Body Mount - No. 2, (LH/RH Super Cab and Crew Cab)
| Item | Description | Torque |
|---|---|---|
| 1 | Upper insulator | - |
| 2 | Body retainer cage nut | - |
| 3 | Cap | - |
| 4 | Body mount bolt | 103 Nm (76 lb-ft) |
| 5 | Bracket nut (2 required) | 63 Nm (46 lb-ft) |

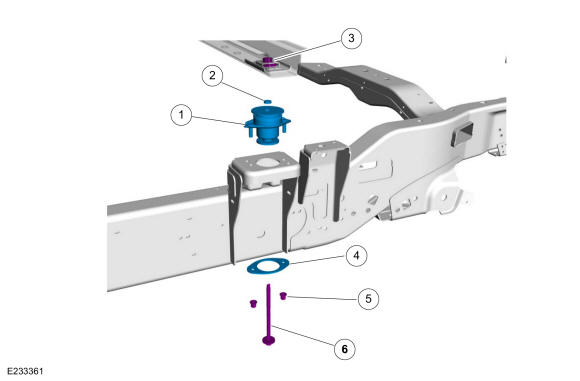

Body Mount - No. 3, Chassis Cab (LH/RH All Cabs)
| Item | Description | Torque |
|---|---|---|
| 1 | Upper insulator | - |
| 2 | Cap | - |
| 3 | Body retainer cage nut | - |
| 4 | Plate | - |
| 5 | Bracket nut (2 required) | 63 Nm (46 lb-ft) |
| 6 | Body mount bolt | 103 Nm (76 lb-ft) Single Rear Wheel vehicle, 103 Nm (76 lb-ft) plus 90 ° angle Dual Rear Wheel vehicle |
Body Mount - No. 3, (LH/RH Pickup Super Cab and Crew Cab)
NOTE:
With hydraulic mounts.
| Item | Description | Torque |
|---|---|---|
| 1 | Cap | - |
| 2 | Body retainer cage nut | - |
| 3 | Upper insulator | - |
| 4 | Hydraulic body mount | - |
| 5 | Body mount bolt (2 required) | 63 Nm (46 lb-ft) |
| 6 | Body mount bolt | 103 Nm (76 lb-ft) Single Rear Wheel vehicle, 103 Nm (76 lb-ft) plus 90 ° angle Dual Rear Wheel vehicle |
