Turbocharger Inlet Pipe LH: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

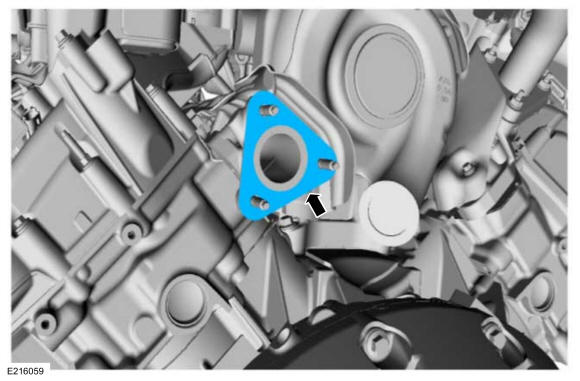

- Install a new gasket on the LH exhaust manifold flange.
-
NOTE: Note the position of the LH turbocharger inlet pipe clamp from disassembly.
Install a new LH turbocharger inlet pipe clamp on the LH turbocharger inlet pipe. Disengage the clamp T-bolt.
-
NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

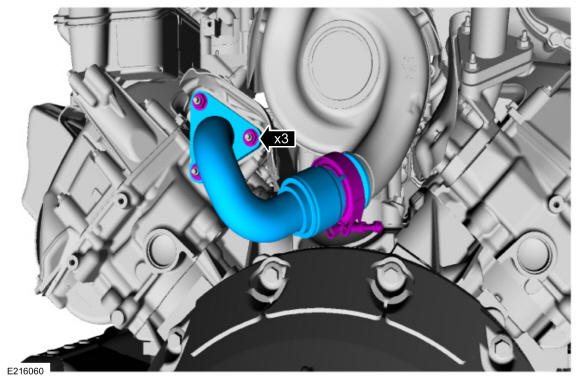

Install new nuts and the LH turbocharger inlet pipe.
Torque: 18 lb.ft (25 Nm)
-
NOTE: Note the position of the LH turbocharger inlet pipe clamp from disassembly.

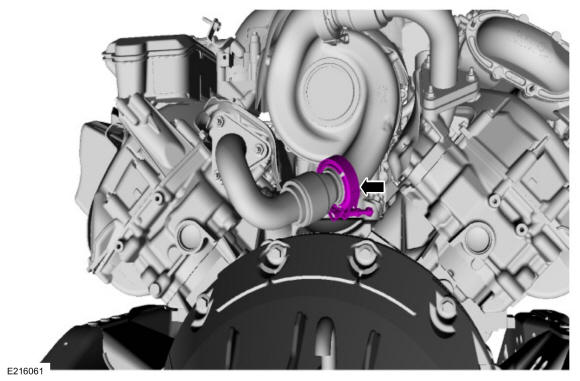

Position the LH turbocharger inlet pipe clamp over the LH turbocharger inlet pipe and the turbocharger sealing flanges. Engage the LH turbocharger inlet pipe clamp T-bolt.
Torque: 159 lb.in (18 Nm)
- Install the exhaust downpipe. Refer to: Exhaust Downpipe .
- Check the exhaust system for leaks.
