Exhaust Intermediate Pipe: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The configuration of the exhaust intermediate pipes varies depending on wheelbase and frame length. Typical application shown.
NOTE:
Clean all exhaust connections before reassembly.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

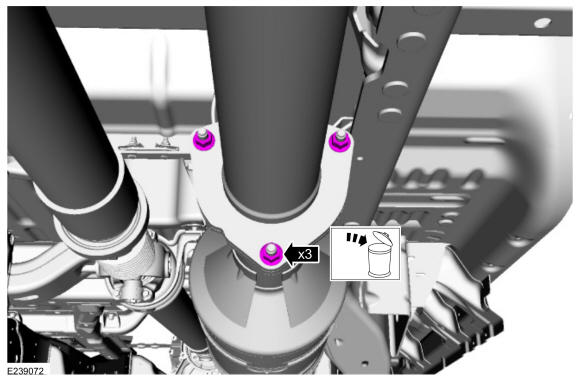

- Remove and discard the 3 catalyst and particulate filter assembly-to-exhaust intermediate pipe nuts.
Torque: 41 lb.ft (55 Nm)

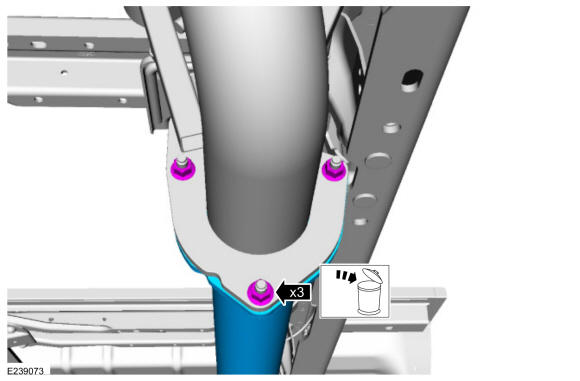

- Remove and discard the 3 nuts and remove the exhaust intermediate pipe.
Torque: 41 lb.ft (55 Nm)

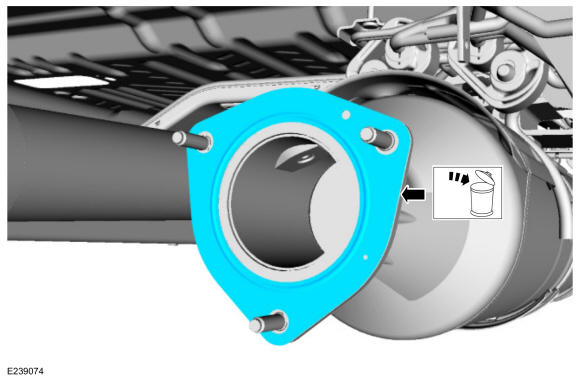

- Discard the catalyst and particulate filter assembly-to-exhaust intermediate pipe gasket.

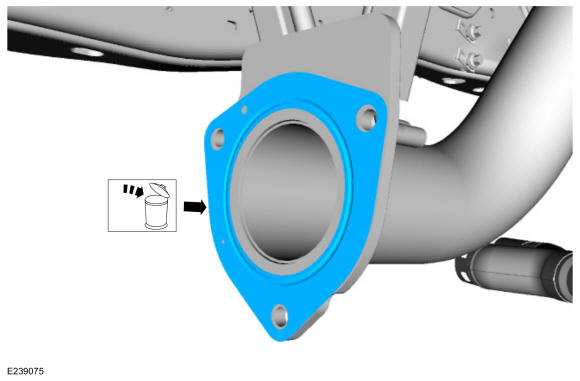

- Discard the exhaust intermediate pipe-to-tailpipe assembly gasket.
